Description

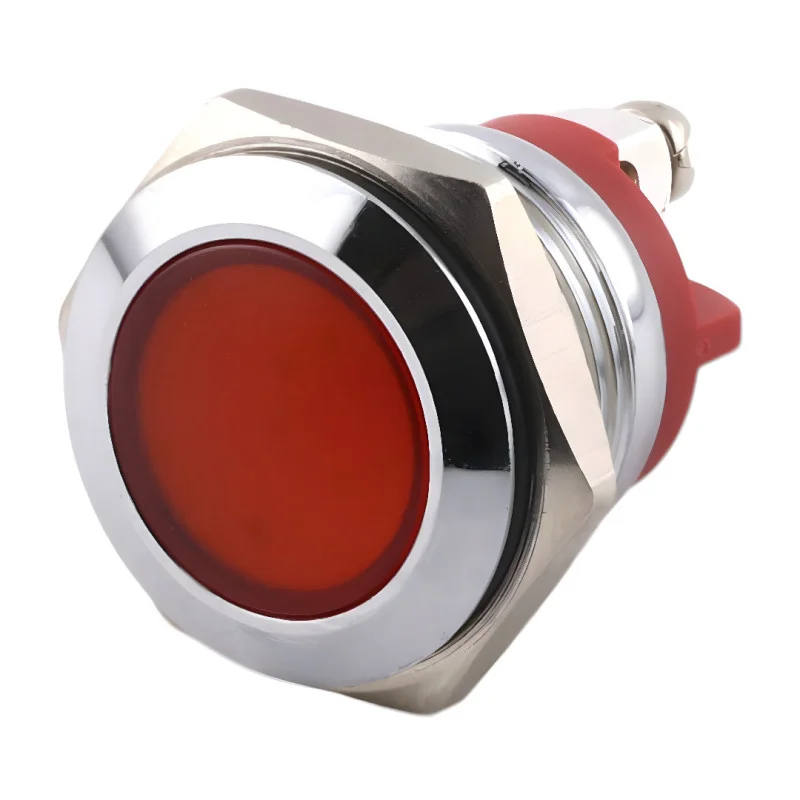

The high-quality metal LED indicator HYD-L-19 with a mounting diameter of 19 mm is designed for reliable visual signaling of power, operation or equipment failure. It offers a wide voltage range, five color options (yellow, blue, red, green, white) and a durable metal body with IP67 protection – ideal for industrial panels, switchboards, measuring instruments and home electronic projects.
Technical specifications
Model: HYD-L-19
Mounting hole diameter: 19 mm
Housing thread: M19×1
Supply voltage: 36V / 1224V / 110220V (depending on variant)
Light source type: LED
LED colors: yellow, blue, red, green, white
Luminosity:
Red: 9001200 mcd
Green: 16002200 mcd
Yellow: 13001800 mcd
Blue: 10001600 mcd
White: 20002500 mcd
LED rated current: 1020 mA (depending on voltage version)
Body material: metal alloy with chrome finish
Connection type: wires or screw terminals
Protection level: IP65
Mechanical resistance: IK08 increased impact resistance
LED life: up to 40,000 hours
Body dimensions: 25 × 24 mm
Wire length: approx. 150 mm
Operating temperature: -20°C to +55°C
Weight: 19g
Functions and features
Mounting in a 19 mm diameter hole using a screw nut
High brightness and long life of LED diodes
Flameproof base and durable gasket guarantee IP65 protection
Elegant metal body with high mechanical resistance
Availability of five color variants for various signaling purposes
Easy installation and universal use in both AC and DC circuits
Ideal for
Industrial control panels and switchboards
Automation and CNC systems
Laboratory and test equipment
DIY electronic projects and model making
Signaling power or device operating status
Package contents
1× metal LED indicator light HYD-L-19 (color according to the selected variant)
1× mounting nut
1× sealing O-ring for waterproof mounting
Why choose this product?
19 mm mounting hole easy installation in most panels
IP65 protection and IK08 resistance for reliable operation in harsh environments
Universal power supply range (3-220 V AC/DC)
Durable metal construction with long service life
Availability of five color options
Aesthetic appearance, compact dimensions and professional workmanship
