Description

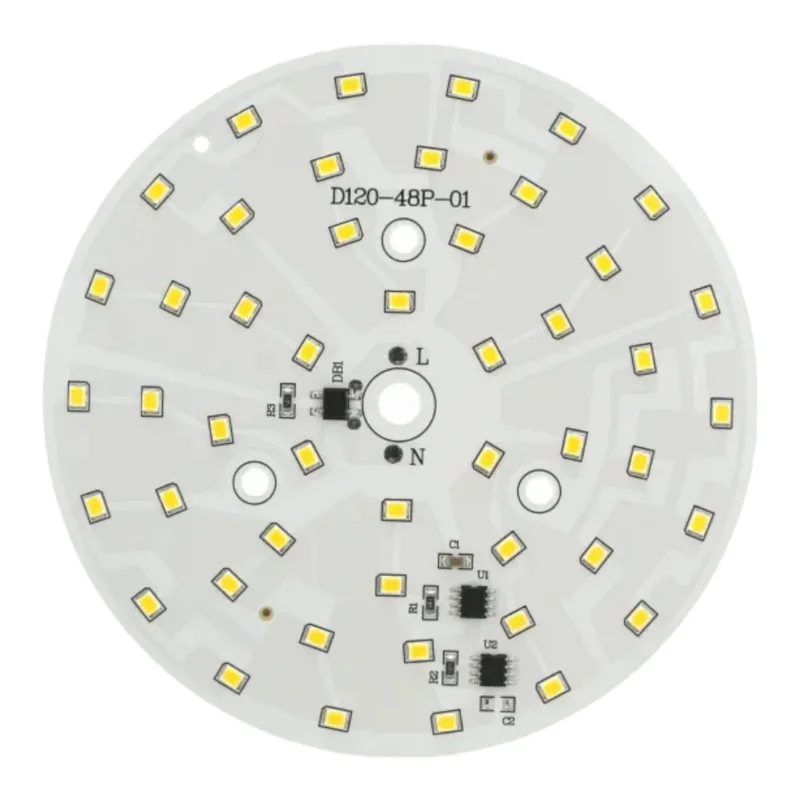

The round LED module is intended as a light source for luminaires and retrofits of lighting fixtures where a compact circular printed circuit board and direct AC power supply are required. The module is available in warm white (30003500K) and cool white (60006500K) light color options.
Technical specifications
Code: AM6592
LED type: SMD 2835
Number of LEDs: 48
Rated power: 18W
Power supply: 170-275V AC
Outer diameter: 120 mm
Beam angle: 120130°
Luminous flux: 14401620 lm
Light color (combination): warm white (30003500K) or cool white (60006500K)
Functions and features
Power supply directly from AC mains in a wide range of 170275 V AC
Circular design for integration into ceiling and wall luminaires
Wide beam angle for even illumination
SMD 2835 assembly for compact module design
Important: the module does not contain wires or a terminal block, the wires must be soldered directly to the printed circuit board of the LED module
Ideal for
Repairs and overhaul of luminaires with a circular LED module
Ceiling and wall lights for interiors
Technical and purpose-built luminaires requiring AC power supply
Custom lighting fixtures and prototypes
Package contents
1x LED module (PCB) Ø120 mm
Without wires and without terminal block
Why choose this product?
Defined parameters for power, power range and luminous flux
Possibility to choose the light color according to the application
Compact circular format suitable for common luminaire designs
Wide beam angle for area lighting
Installation and operating instructions
Install in a luminaire or assembly that ensures mechanical fixation of the module and protection against touching live parts.
Solder the wires directly to the module’s solder pads; use wires with appropriate temperature resistance and cross-section according to the current load.
When soldering, minimize the heating time of the soldering pads and prevent overheating of the LEDs and PCB.
Ensure heat dissipation according to the luminaire design; operation without adequate cooling may shorten the service life and cause failure.
Before commissioning, check the quality of soldered joints, mechanical fastening and electrical insulation.
Safety notice
The module is designed for mains power and operates with a dangerous voltage of 170275 V AC. Improper handling may result in electric shock, burns or fire.
Installation and servicing may only be carried out by a qualified person with knowledge of working on electrical equipment and in compliance with applicable standards and regulations.
Before any manipulation, always disconnect the device from the power supply and verify that it is voltage-free. It is not enough to simply turn off the power switch, it is necessary to ensure disconnection from the mains.
The module does not contain any wires or terminal block; the connection is made by soldering. Insufficiently made soldered connections, loose wires or inadequate insulation can cause overheating, short circuit and subsequent damage or fire.
After connection, all live parts and soldered connections must be reliably covered and secured against contact. The module must not be operated in a freely accessible manner.
Maintain sufficient insulation distances and use suitable insulation materials that are resistant to the temperatures generated during operation.
Do not operate in environments with high humidity or where condensation may occur unless the module is part of an appropriately covered luminaire.
Ensure adequate cooling. Overheating can lead to LED degradation, parameter changes, failure, and increased risk of damage to surrounding materials.
Do not use the module if there is any damage to the PCB, LEDs, solder pads, or signs of overheating.
