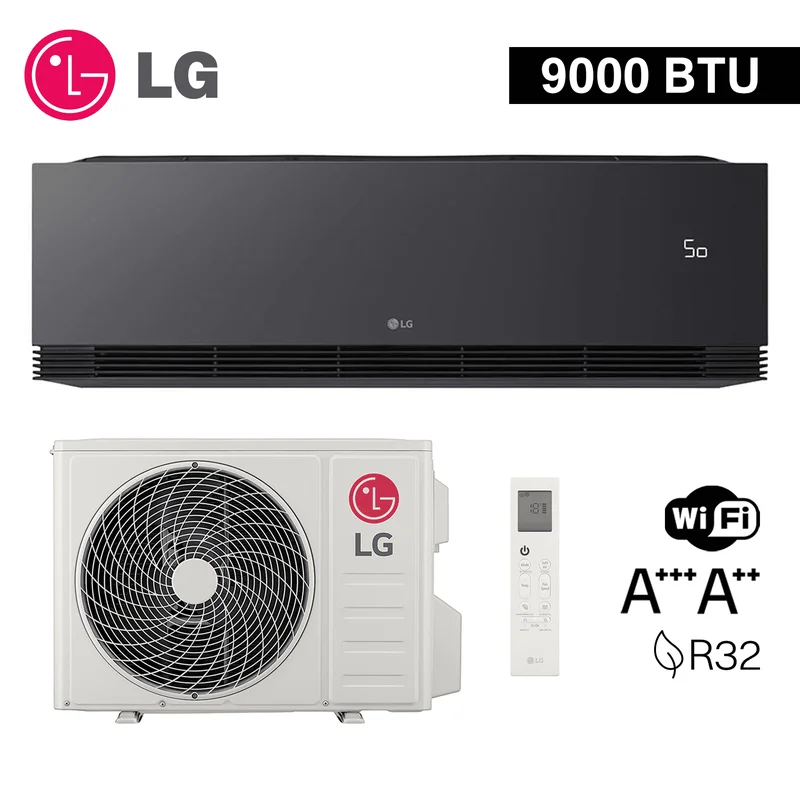

LG Artcool BLACK AI air WiFi mono split 9000 Btu 2.5 Kw A+++/A++ General features:
Artcool Black design with panel with matte finish
AI Air technology for intelligent comfort optimization
Soft Air diffusion with double deflector for indirect air flow
Integrated Wi-Fi with LG ThinQ app
Compatible with Google Home
Plasmaster Ionizer+ ionizer and certified Allergy Filter
Low-noise BLDC motor
Smart Diagnosis, Jet Cool/Heat, Auto Cleaning functions
Model:
Series: LG Artcool Artcool Black
Indoor unit model and Btu: AA09SB.NS1 9000 BTU (Matte finish)
Outdoor unit model: AA09SP.U18
Type: Air-air mono split heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 9,7 / 5,1
Energy efficiency class (Cooling): A+++
Energy efficiency class (Heating): A+++
Seasonal energy consumption kWh/year: 90 (cool.) 769 (heat.)
Performance:
Cooling capacity (kW): 2,50 kW (2500 W)
Heating capacity (kW): 3,20 kW nominal
Indoor unit sound pressure MAX-MIN (dB(A+1)): 40 19
Outdoor unit sound pressure MAX-MIN (dB(A+1)): 51 49
Cooling power input kW: 0,510 kW
Heating power input kW: 0,640 kW
Dehumidification: 1,1 l/h
Electrical data:
Power supply ( / V / Hz): 1 / 220-240 / 50
Technical specifications:
Refrigerant gas: R32
Liquid / gas pipe diameter (inches): 1/4″ 3/8″
Max air flow rate (Power) m³/min: 13,6 (IU) 35 (OU)
Maximum pipe length with standard charge: 7,5 m (pre-charge 900 g)
Maximum pipe length with additional charge: 20 m (additional 20 g/m)
Maximum height difference (outdoor unit above): 10 m
Operating limits (outdoor temperature): Cooling -15~48 °CDB / Heating -15~24 °CWBCDB
Dimensions and weight:
Indoor unit without packaging HxWxD (mm) and weight (Kg): 895 × 307 × 235 mm 12,5 kg
Outdoor unit dimensions HxWxD (mm) and weight (Kg) without packaging: 770 × 545 × 288 mm 25 kg
Product code: AA09SB.NS1+AA09SP.U18
