Description
Lithium-polymer (Li-Pol) rechargeable battery is designed to power portable electronic devices and applications where high capacity is required in a compact size. The design allows multiple cells to be assembled in series and used in battery packs.
Technical specifications
Voltage: 7.4V
Capacity: 5000mAh
Capacity: 37Wh
Charging voltage: 7.4-8.4 V DC
Discharge current: 1C
Number of charging cycles: 2000
Minimal self-discharge (approx. 5% per month)
Working temperature: -10 – 50°C
Type designation: 606090
Size: 90x60x12mm
Functions and features
Li-Pol technology suitable for devices requiring higher energy density
No memory effect during normal use
Possibility of connecting multiple cells in series within battery packs
Suitable for applications with consumption up to 1C
Ideal for
Mobile electronics and portable devices
Power battery packs for hobby and technical applications
Devices requiring 7.4V (2S Li-Pol)
Package contents

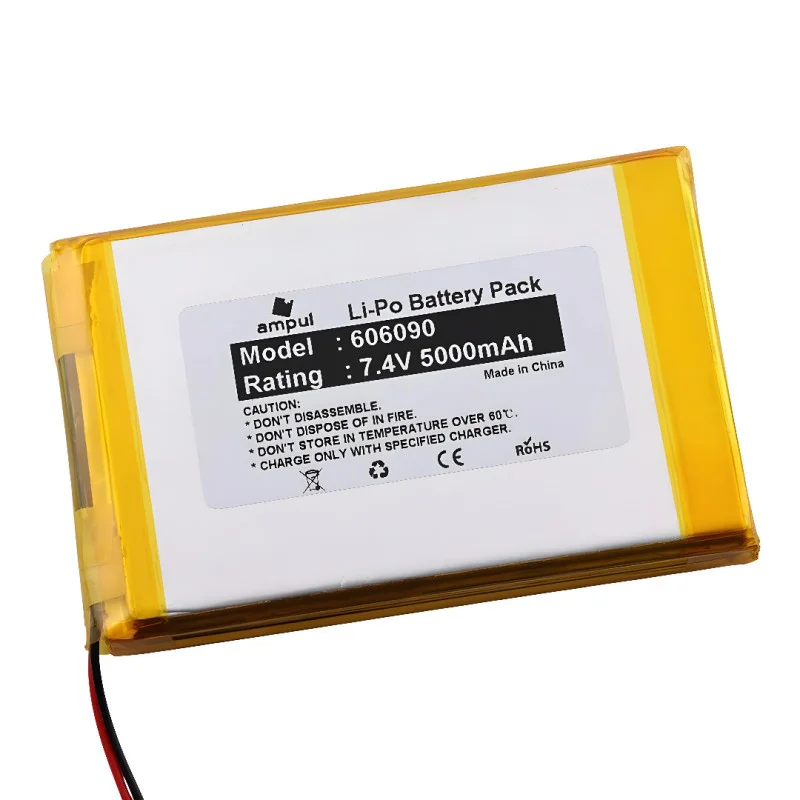

1x Li-Po rechargeable battery 606090
Why choose this product?
Clearly defined electrical parameters for power supply design (7.4 V / 5000 mAh / 37 Wh)
Stable operating parameters in the range of -10 to 50 °C
Low self-discharge suitable even for occasionally used devices
Installation and operating instructions
Use a charger designed for Li-Pol batteries (2S) with a terminal voltage of 8.4 V.
It is not recommended to discharge below 2.7 V per cell; if the voltage drops below 2.7 V, the battery may be irreversibly destroyed.
Provide appropriate fuses and protection against overcharge, underdischarge and short circuit (BMS/protection circuit according to application)
Safety notice
Do not short-circuit, mechanically damage or expose the battery to high temperatures.
Charge only under supervision and in accordance with the requirements for Li-Pol cells.
Improper use may cause overheating, battery damage, or fire.
