Description

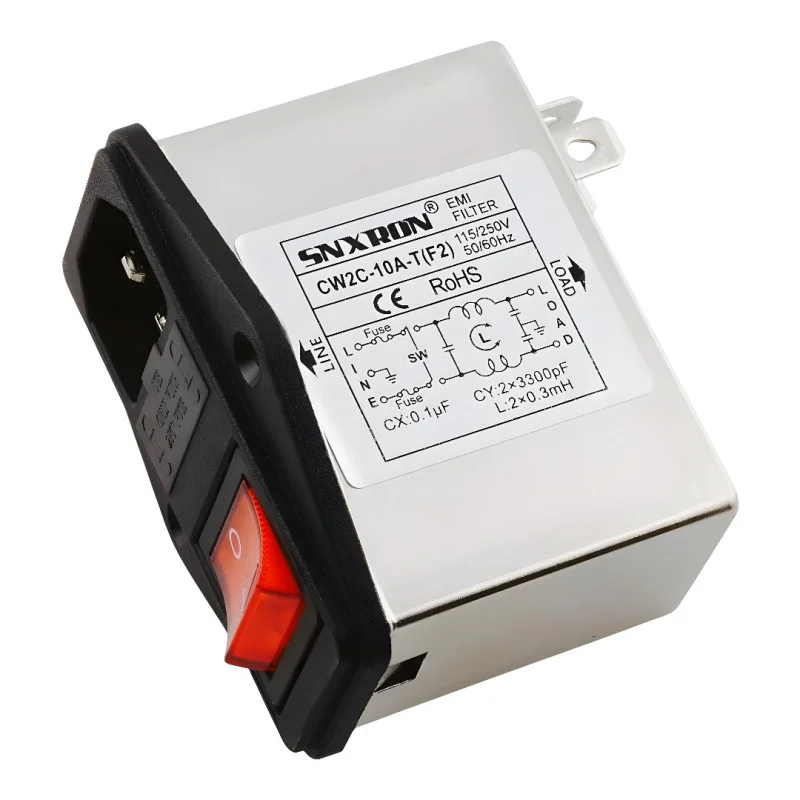

Panel-mounted mains input module combining IEC C14 inlet, EMI filter and illuminated rocker switch. The CW2C-10A-T(F2) variant is intended for the power input of devices where interference suppression on the mains and integrated protection using a double fuse (F2) is required. The installation is designed for a mounting hole in the panel.
Technical specifications
Model: CW2C
Type: IEC Socket Type Power Filter (mains input EMI filter with IEC socket)
Rated voltage: 115/250VAC
Rated current: 3A, 6A, 10A (depending on variant)
Switching: red with backlight
Operating frequency: 50/60Hz
Protection: double fuse protection (F2)
Input type: IEC C14
Connection: single-phase
Leakage current: < 0.5 mA
Operating temperature: -25 to +85 °C
Climate category: 25/085/21
Material/design: housing with nickel-plated surface
Dimensions (according to documents): 66 × 52 × 58 mm
Certification (according to documents): CE, RoHS
Mounting: mounting into the mounting hole in the panel
Functions and features
Integrated EMI filter to reduce high-frequency interference at the device’s power input
IEC C14 input connector and rocker switch in one module
Double fuse protection (F2) for power supply branch protection according to device design
Suitable for standard mains applications 115/250VAC at 50/60Hz
Panel mount for quick installation into equipment cabinet
Ideal for
Power input for industrial and laboratory equipment
Power input for measuring devices and control units
Equipment requiring a combination of IEC power cord, switch, and mains EMI filter
Service and production use in the design and assembly of power panels
Package contents
1× panel IEC input filter CW2C with on/off switch
Why choose this product?
Compact integration of multiple functions (IEC C14 + switch + EMI filter + fuse protection) into one panel element
Parameters suitable for common mains power supply 115/250VAC and current load up to 10A
Panel mounting simplifies the design of the device’s power input
Listed certifications (CE, RoHS) according to available documents
Installation and operating instructions
Install into the corresponding mounting hole in the panel and ensure mechanical stability according to the cabinet design.
Observe the correct connection of the LINE (L), NEUTRAL (N) and PE conductors according to the marking on the module and according to the diagram of your device.
Connect the output side (LOAD) to the powered circuit of the device; connect the input side to the mains supply.
Select and install fuses according to the application requirements and design limits of the device.
Safety notice
The product is designed to operate with a mains voltage of up to 250VAC. Improper installation may result in electric shock or damage to the device.
Installation and connection must be carried out by a qualified person in accordance with applicable standards and regulations.
Before any intervention, disconnect the device from the power supply and verify that there is no voltage.
Ensure reliable connection of the PE protective conductor.
