Maximum pressure switch with manual reset for heating systems, threaded connection G 1/4 female-Spedizione veloce

Description

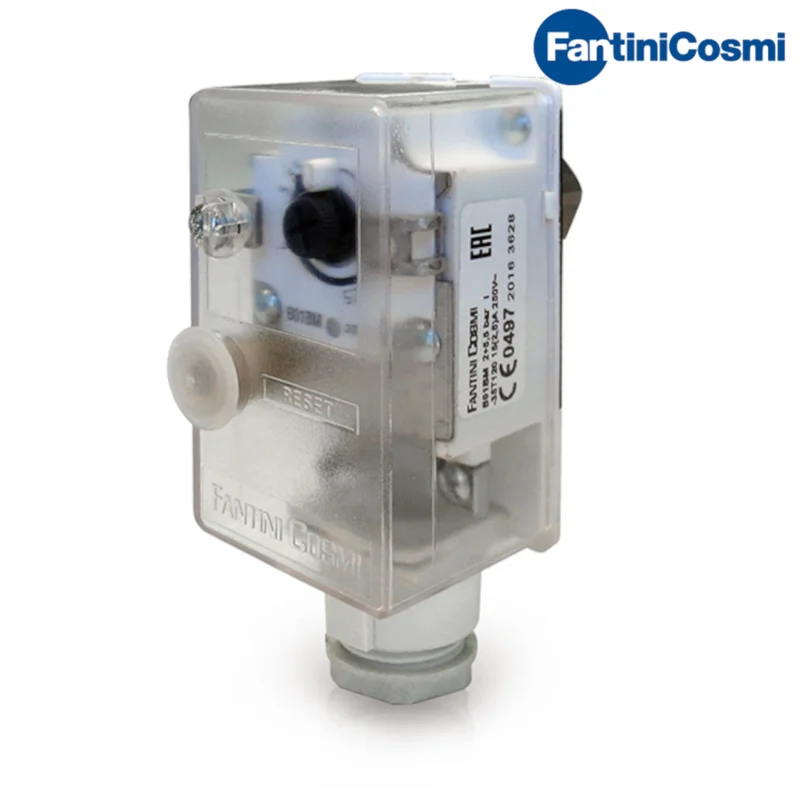

Maximum pressure switch with manual reset – IP44 G 1/4″ F
Description:
Pressure switch for blocking and safety with manual reset, suitable for heating systems.
General characteristics:
– Fluid contact parts in stainless steel, laser welded.
– Base and cover made of impact-resistant and self-extinguishing V0 thermoplastic material.
– Connection outlet with impact-resistant and self-extinguishing V0 thermoplastic cable gland G 1/2.
– Sensitive element with stainless steel diaphragm.
– Internal adjustment: the case is designed to be sealed after calibration.
– Maximum fluid temperature controlled: 120 °C.
– Permissible temperature for switch body: -35 to 80 °C.
– Storage and transport temperature: -35 to 80 °C.
– Unit weight: 0.14 kg.
Electrical characteristics:
– Nominal insulation voltage Ui: 380V~
– Continuous service current Ith: 15A
Product code: B01BMX
