Description

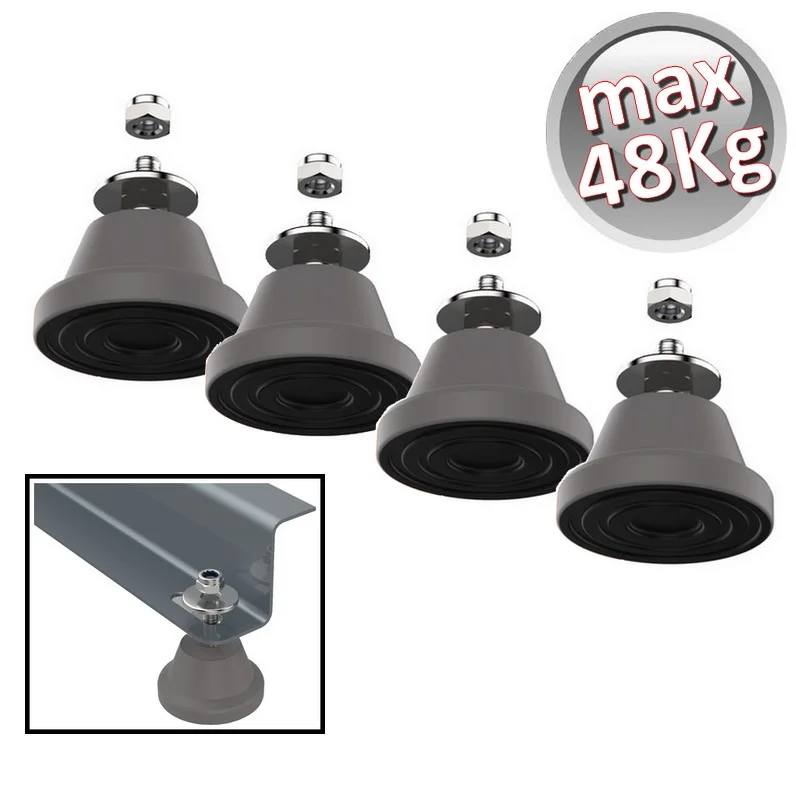

SE-CG-10 – Anti-vibration floor mount in megol
Max capacity 48 Kg, grey color, set of 4 feet
Features:
Next-generation damper for supporting base-mounted outdoor units, with a single 8 mm threaded outlet and the corresponding nut to secure the unit.
Its special megol composition offers excellent vibration damping and increased resistance to aging and micro-crack-related damage.
Ideal for machines operating from 1250 rpm.
Fields of application:
Designed to support and eliminate acoustic and vibro-mechanical pollution from the machines self-supporting structure, ensuring performance and safety.
Intended for use in domestic or semi-industrial air conditioning machines such as: chillers, fans, hoods, condensers, etc.
Resonance frequency: 715 Hz.
Available in 4 hardness levels depending on performance and applied load.
Anti-vibration height: 75 mm.
Load capacities:
Grey color: loads between 4 – 12 Kg per piece;
Green color: loads between 9 – 24 Kg per piece;
Blue color: loads between 15 – 35 Kg per piece;
Red color: loads between 30 – 50 Kg per piece.
Product code: SE-CG-10
