Description

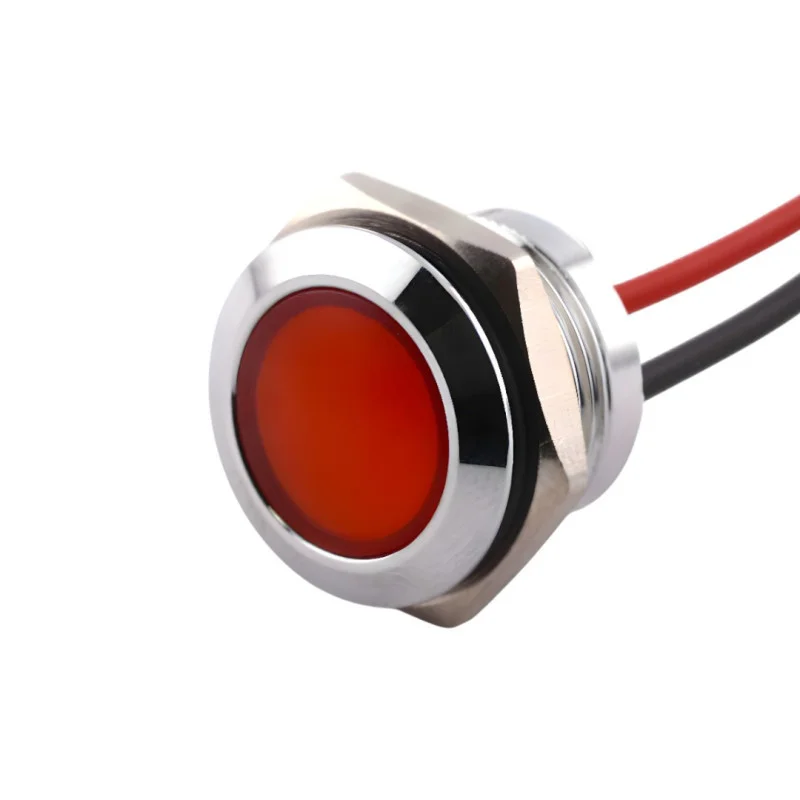

The universal metal LED indicator with a diameter of 16 mm is ideal for signaling power, device operation or circuit status. Thanks to the wide voltage range and availability in five colors (red, green, yellow, blue, white), it finds application in industrial panels, machines, electrical cabinets and home DIY projects.
Technical specifications
Model: HYD-L-16
Mounting hole diameter: 16 mm
Supply voltage: 36V / 1224V / 110220V (depending on variant)
Light source type: LED
Body material: metal (aluminum alloy)
LED colors: red, green, yellow, blue, white
Protection level: IP65
Mechanical resistance: IK08
LED life: up to 40,000 hours
Dimensions: 21.4 × 23.6 mm
Connection: 150mm wires
Operating temperature: -25°C to +80°C
Weight: 12 g
Functions and features
High luminosity and low energy consumption
Metal body with high mechanical resistance
Flame-retardant base
Suitable for mounting in a panel with a diameter of 16 mm
Easy connection wires or screw terminals
High reliability and long service life
Available in five color options for different signaling purposes
Ideal for
Industrial and laboratory equipment
Control panels and switchboards
Machines, tools, lathes and CNC
DIY projects, electronic constructions
Automation and measurement technology
Package contents
1× metal signal light HYD-L-16 (color according to the selected variant)
1× mounting nut
1× sealing ring (O-ring)
Why choose this product?
Universal power supply range 3220 V AC/DC
IP65 protection for use even in harsh conditions
Durable metal construction with long service life
Availability of multiple color options for clear signaling
Easy installation, compact dimensions and elegant appearance
