Description

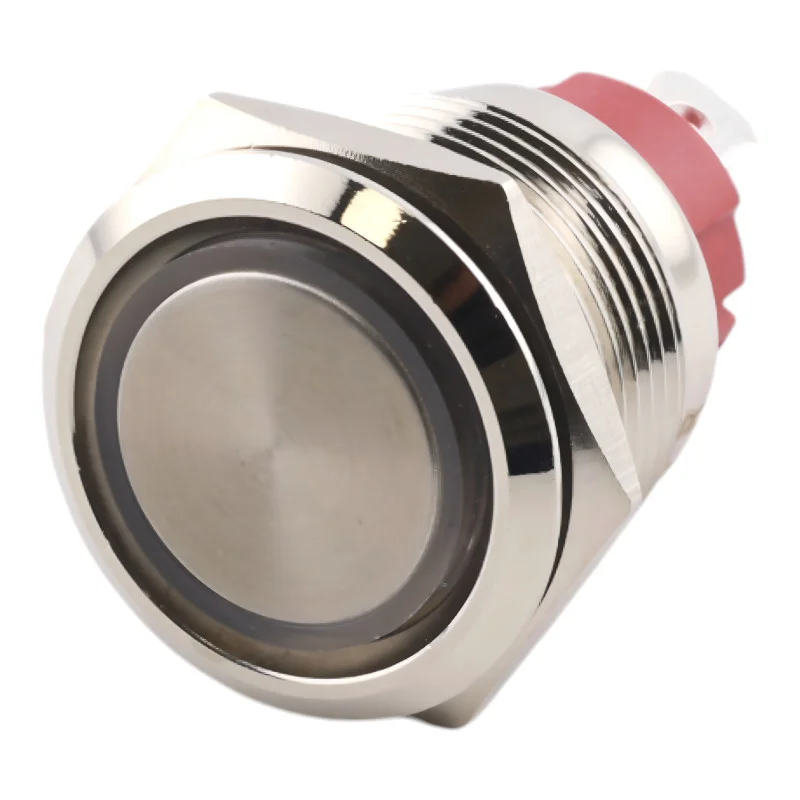

Professional metal push button switch with a diameter of 21 mm with LED backlight is designed for universal use in industrial, automotive and domestic applications. Thanks to the high current load of 15A, robust metal construction and IP65 protection, it is ideal for reliable switching and controlling devices even in more demanding conditions.
Technical specifications
Mounting diameter: 19 mm
Head type: flat
Switch combination: 1NO (one switching contact)
Function: self-holding (latching)
Max. switching voltage: 240 V AC
Maximum current: 15 A
LED backlight color: red, green, yellow, blue, white (depending on variant)
LED voltage: 36 V / 1224 V / 110220 V (depending on variant)
Body material: nickel-plated copper / stainless steel / black oxidation aluminum
Protection: IP65, resistance IK09
Color: silver
Dimensions: 22x22x28.5mm
Functions and features
Robust metal body resistant to mechanical damage
LED backlight for clear status indication
Resistance to moisture, dust and water (IP65)
Easy installation thanks to standard diameter of 19 mm
Safe flame retardant base
Ideal for
Automotive and motorcycle installations
Machine and equipment control panels
Home and industrial automation
Power circuits and switching modules
DIY and IoT projects
Package contents
1× metal push button switch 19 mm with LED according to the selected variant
Why choose this product?
High current carrying capacity up to 15 A
Long service life and reliability thanks to high-quality materials
Universal use in a wide range of applications
Durable body and IP65 waterproof design
Easy installation and clear wiring
