Description

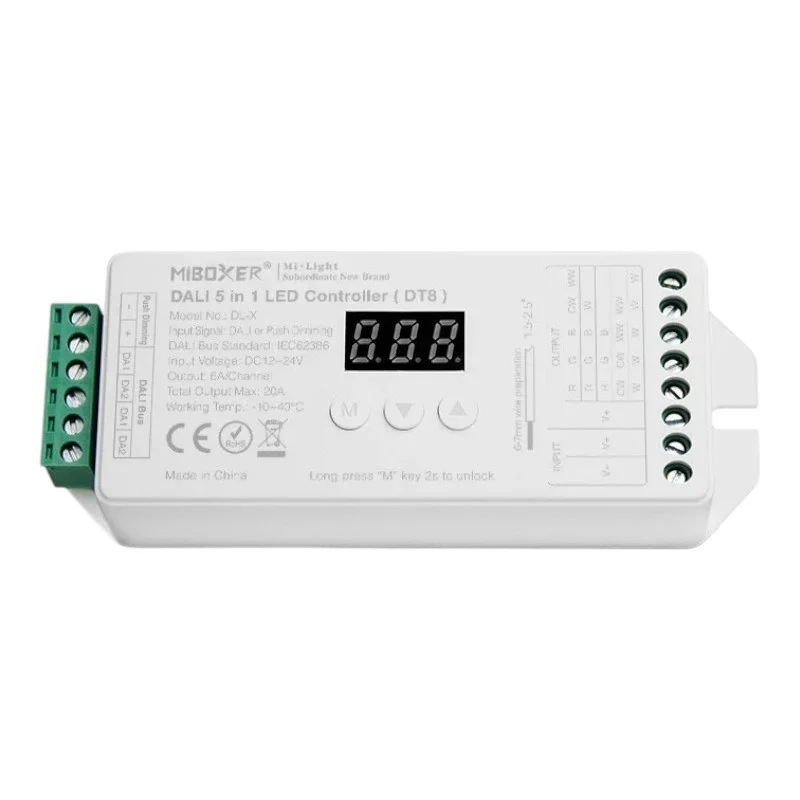

DL-X DALI 5 in 1 LED driver (DT8) is a universal device designed to control various types of LED lighting with support for the standard DALI protocol IEC62386-102, 207 and 209. It supports DT8 types TC, xy coordinates and RGBWAF, which allows for precise adjustment of color and light temperature.
Key features:
Five output modes: Allows control of single-color LEDs, dual white, RGB, RGBW and RGB+CCT lighting, ensuring wide compatibility with various types of LED fixtures.
Adjustable brightness and color temperature: Provides the ability to continuously adjust brightness and color temperature to create ideal lighting in any environment.
16 million color support: With support for DT8 type TC and xy coordinates, it offers a wide range of color options to customize lighting as needed.
Two types of dimming curves: Users can choose between logarithmic and linear dimming curves to achieve the desired dimming effect.
Digital display: The integrated digital display allows for quick setting of output mode, dimming curve, address and group, with all information displayed in real time.
Push dimming support: Brightness control and turning lights on/off can be done with a button, increasing control flexibility.
Protective functions: The device is equipped with protection against reverse polarity, short circuit and overload, ensuring safe and reliable operation.
Technical parameters:
Input voltage: DC 12-24V
Total output current: 20A
Input signal: DALI signal or push dimming
Working temperature: -10 to 40°C
Output connection: Common anode
The DL-X DALI 5 in 1 LED driver is an ideal choice for professional lighting systems requiring flexible and precise control of various types of LED lighting using the DALI protocol.
