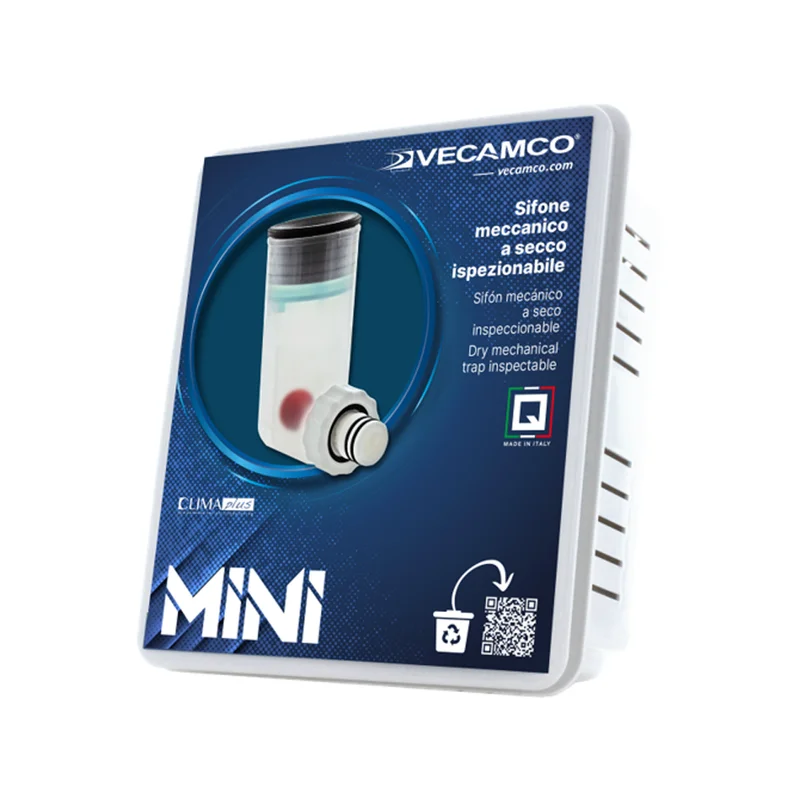

KSM.005 – INSPECTABLE DRY TRAP
for air conditioners with recessed box
DESCRIPTION:
Dry traps are designed to eliminate bad odors coming from the condensate drain pipe, one of the main issues in HVAC system installations. Many traps are installed inside walls and sealed in, making future inspection impossible.
MAIN FEATURES:
50 mm water seal column
Upper water inlet sleeve in rubber
Removable internal components for inspection and periodic cleaning
Trap body with 90° outlet to reduce overall dimensions
Reversible mounting (left/right) with or without wall-mounted recessed box
Drain outlet D18/20 for corrugated pipes (our items 9899-050/052-01)
Optional 90° elbow fitting for vertical water outlet
The trap works only in vertical mode with rubber inlet positioned at the top
Mini Dry Trap KIT:
Mini dry trap
Technical gasket
O-ring seal
Recessed box with lid and screws
Mini Dry Trap:
Vertical inlet and horizontal outlet, with technical gasket and O-ring
Inspectable multi-function box
Recessed box with cover for housing the mini dry trap, with screws included
Product code: KSM.005
