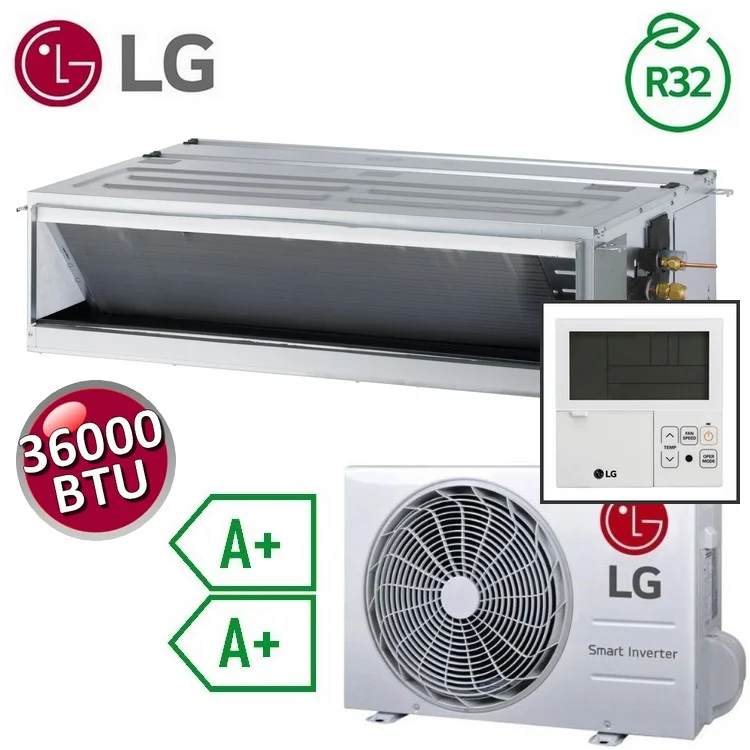

LG MONO DUCTED COMPACT INVERTER 36,000 BTU UM36F.N20 UUC1.U40
DUCTED MEDIUM STATIC PRESSURE – WALL CONTROL INCLUDED
DESCRIPTION:
Series: COMPACT INVERTER – with R32 refrigerant
Indoor unit model: UM36F.N20
Outdoor unit model: UUC1.U40
Type: heat pump
Power: 36,000 BTU
Energy Efficiency:
Seasonal Efficiency:
-SEER: 5.9
-SCOP in medium climate zone: 4.0
Energy Efficiency Class (Cooling): A+
Energy Efficiency Class (Heating): A+
Seasonal Energy Consumption kWh/year: cooling 564 – heating 1924
Performance:
Cooling Capacity (kW): 9.5 (3.8 / 10.5)
Heating Capacity (kW): 10.8 (4.3 / 11.5)
Airflow Indoor Unit (sa.-a.-m.-b.) m³/min: 32 / 28 / 24
Sound Pressure Indoor Unit (sa.-a.-m.-b.) (dB(A)): 36 / 33
Sound Pressure Outdoor Unit Max (dB(A)): 54 / 56
Sound Power Outdoor Unit (a.): 70
Power Consumption Cooling kW: 0.60 / 3.16 / 3.86
Power Consumption Heating kW: 0.60 / 3.03 / 3.48
Electrical Data:
Power Supply (V/Hz/): 230/1/50
Features:
Refrigerant Gas: R32 / 1900 g / 1.283 Tco2
Liquid / Gas Pipe Diameter: 9.52 (3/8″) / 15.88 (5/8″) mm
Maximum Pipe Length with Additional Charge m: 50
Maximum Elevation (Outdoor Unit Above) m: 30
Dimensions and Weight:
Indoor Unit HxWxD (mm): 270x1250x700; 38.5 kg
Outdoor Unit HxWxD (mm): 834x950x330; 65 kg
Product Code: UM36F.N20+UUC1.U40
