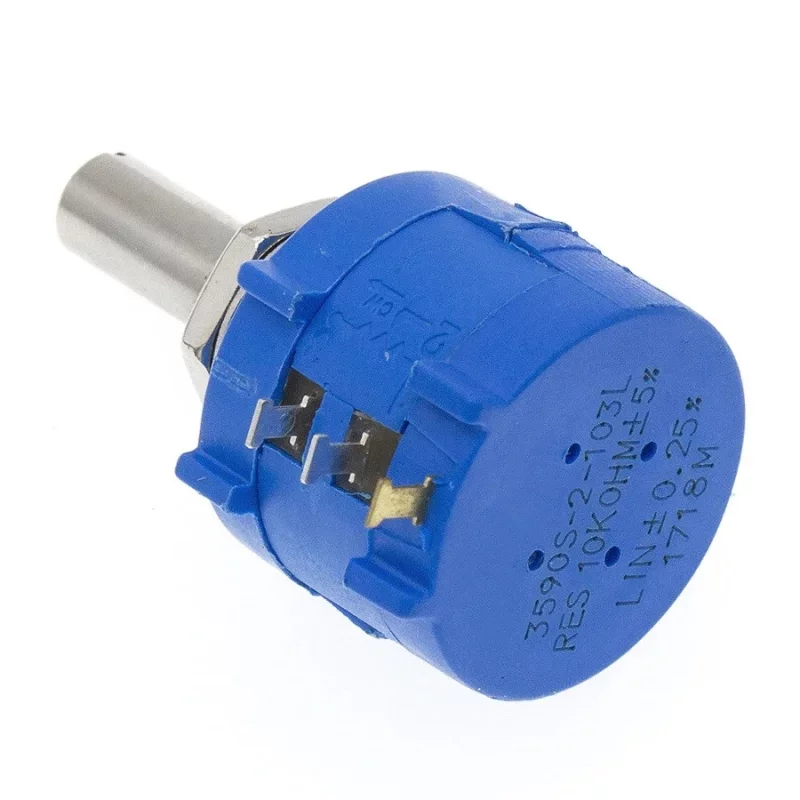

Multi-turn potentiometer 3590S-2, 2W-Spedizione veloce

Description

Linear potentiometer, multi-turn with ±5% tolerance .

Pd – Power dissipation: 2 W

Number of turns: 10 (3600°)

Type of potentiometer: axial

Track type: wire

Potentiometer features: precision

Linearity Tolerance: ±0.25%

Min. insulation resistance: 1000mOhm

Dimensions: 39.3 x 18.6mm

Shaft length: 12.6mm, shaft diameter: 6.35mm

Mounting hole diameter: 9.5mm (nut attachment)

Type designation:
3590S-2-101L (100 Ohm)
3590S-2-201L (200 Ohm)
3590S-2-501L (500 Ohm)
3590S-2-102L (1 kOhm)
3590S-2-202L (2 kOhm)
3590S-2-502L (5 kOhm)
3590S-2-103L (10 kOhm)
3590S-2-203L (20 kOhm)
3590S-2-503L (50 kOhm)
3590S-2-104L (100 kOhm)
