Description

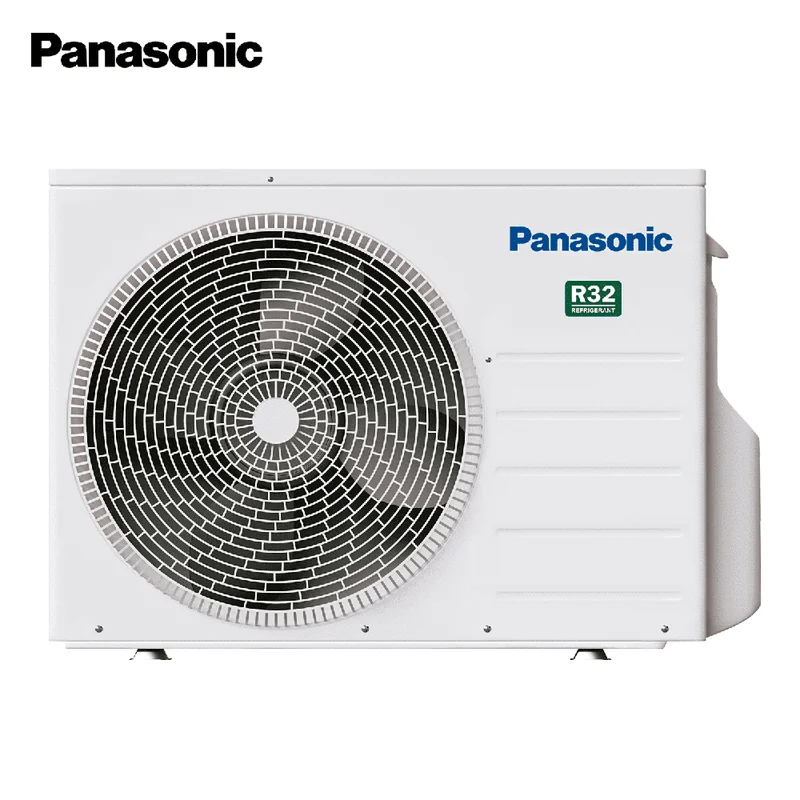

ETHEREA C dual outdoor unit 3,2 / 6,0 Kw for multi R32 systems – PANASONIC CU-2Z35CBE Model:
Outdoor unit: Free Multi Z system R32
Outdoor unit model: CU-2Z35CBE
Type: DUAL multi split heat pump (2 indoor units)
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): SEER 9,10 SCOP 4,80
Energy efficiency class (Cooling): A+++
Energy efficiency class (Heating): A++
Seasonal energy consumption kWh/year: 135 (cooling) / 933 (heating)
Connectable to up to 2 indoor units (DUAL).
The unit must operate with a minimum of 2 indoor units connected.
Performance:
Cooling capacity (kW): 3,50 (Nominal) Min 1,50 / Max 4,50
Heating capacity (kW): 4,20 (Nominal) Min 1,10 / Max 5,60 3,77 kW at -7°C
Sound pressure MAX-MIN (dB(A)): 48 dB(A) in cooling / 50 dB(A) in heating (Hi value)
Cooling power input kW: 0,76 (Nominal) Min 0,25 / Max 1,10
Heating power input kW: 0,83 (Nominal) Min 0,21 / Max 1,34
EER: 4,61 (Nominal) Min 6,00 / Max 4,09
COP: 5,06 (Nominal) Min 5,24 / Max 4,18
Electrical data:
Power supply ( / V / Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32 Quantity 1,18 kg CO equivalent 0,797 t
Liquid / gas pipe diameter (inches): 1/4″ (6,35 mm) / 3/8″ (9,52 mm)
Maximum pipe length with standard charge: 20 m
Maximum pipe length with additional charge: 30 m
Additional charge: 15 g/m beyond 20 m
Operating limits (outdoor temperature): Cooling -10°C / +46°C Heating -15°C / +24°C
Maximum height difference (in/out): 10 m
Dimensions and weight:
Outdoor unit dimensions HxWxD (mm) and weight (Kg) without packaging: 619 × 824 × 299 mm 37 kg
Product code: CU-2Z35CBE
