Description

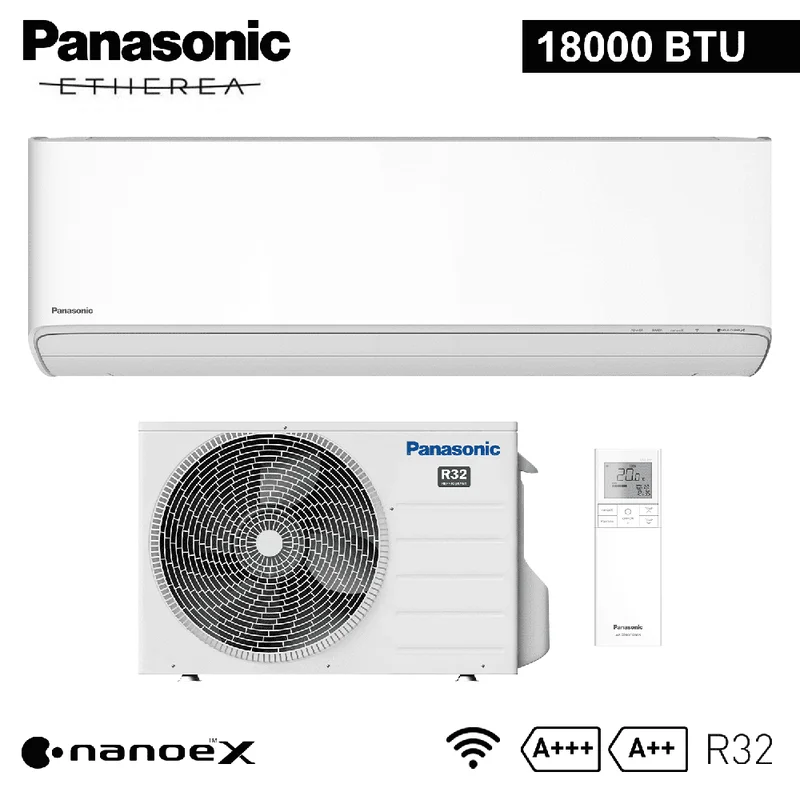

PANASONIC ETHEREA C white mono split air conditioner 18000 BTU A+++/A++ General features:
High energy efficiency monosplit air conditioner with nanoe X Mark 3 technology.
Heat pump operation for cooling and heating.
R32 refrigerant gas with low environmental impact.
High quietness of the indoor and outdoor unit.
High air treatment capacity for medium and large rooms.
Precise temperature control and optimized consumption.
Model:
Series: Panasonic Etherea C
Indoor unit model and Btu: CS-Z50CKEW 18,000 BTU
Outdoor unit model: CU-Z50CKE
Type: Monosplit heat pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 8.50 / 4.80
Energy Efficiency Class (Cooling): A+++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 206 (cooling) / 1225 (heating)
Performance:
Cooling Capacity (kW): 5.00 (0.98 6.00)
Heating Capacity (kW): 5.80 (0.98 8.00)
Indoor unit Sound Pressure MAX-MIN (dB(A+1)): 44 / 37 / 30 (cooling) 44 / 37 / 30 (heating)
Outdoor unit Sound Pressure MAX-MIN (dB(A+1)): 47 / 47
Cooling power input kW: 1.36 (0.25 1.90)
Heating power input kW: 1.40 (0.23 2.39)
Electrical data:
Power supply ( / V / Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32 1.13 kg / 0.76 t CO eq.
Liquid / gas pipe diameter (inches): 1/4″ (6.35 mm) / 1/2″ (12.70 mm)
Max air flow (Power) m³/min: 17.4 / 19.1 (indoor unit) 39.8 / 36.9 (outdoor unit)
Maximum piping length with standard charge: 7.5 m
Maximum piping length with additional charge: up to 30 m additional charge 15 g/m
Maximum height difference (outdoor unit above): 15 m
Operating limits (outdoor temperature): Cooling -10 ~ +43 °C / Heating -20 ~ +24 °C
Dimensions and weight:
Indoor Unit without packaging HxWxD (mm) and weight (Kg): 295 × 1040 × 244 mm 12 kg
Outdoor Unit dimensions HxWxD (mm) and weight (Kg): 695 × 875 × 320 mm 42 kg
Product code: KIT-Z50-CKE
