Description

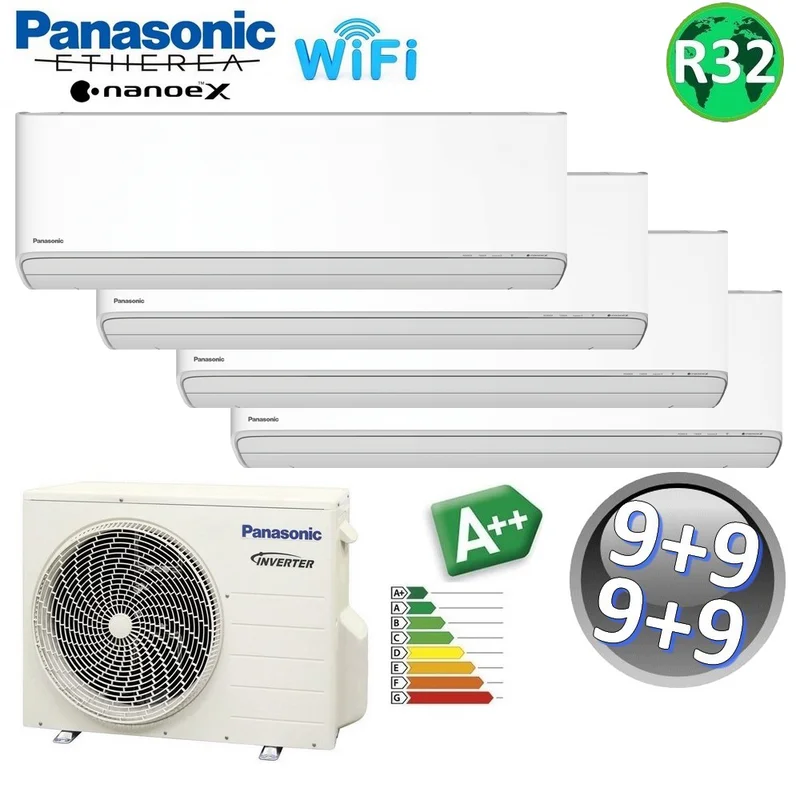

PANASONIC ETHEREA R32 quad split air conditioner 9+9+9+9 btu A++ WIFI NanoeX General features:
High-efficiency quad split system with Inverter technology and eco-friendly R32 refrigerant
Panasonic ETHEREA indoor units with NanoeX air purification technology
Integrated WiFi control for remote management via dedicated app
Heat pump operation for year-round cooling and heating
Modern, quiet design optimized for residential environments
High energy efficiency in all operating modes
Model:
Series: Panasonic ETHEREA R32
Indoor unit model and Btu: 4 × CS-Z25CKEW 9000 BTU
Outdoor unit model: CU-4Z68CBE
Type: Inverter Quad Split Heat Pump
Energy efficiency:
Seasonal efficiency:
SEER / SCOP (average climate): 8,20 / 4,60
Energy Efficiency Class (Cooling): A++
Energy Efficiency Class (Heating): A++
Seasonal energy consumption kWh/year: 290 (cooling) / 1704 (heating)
Performance:
Cooling capacity (kW): 6,80 (min 1,90 max 8,00)
Heating capacity (kW): 8,50 (min 1,70 max 10,40)
Indoor unit sound pressure MAX-MIN (dB(A+1): 41 / 21 (for each CS-Z25CKEW)
Outdoor unit sound pressure MAX-MIN (dB(A+1): 51 / 53
Cooling input power kW: 1,74 (min 0,27 max 2,37)
Heating input power kW: 2,00 (min 0,36 max 2,86)
Electrical data:
Power supply ( / V /Hz): 1 / 230V / 50Hz
Technical specifications:
Refrigerant gas: R32 (quantity 2,25 kg CO eq. 1,519 t)
Liquid / gas pipe diameter (inches): 1/4″ (6,35 mm) / 3/8″ (9,52 mm)
Max air flow (Power) m³/min: data not specified
Maximum piping length with standard charge: 30 m
Maximum piping length with additional charge: up to 60 m (total range 660 m)
Maximum height difference (outdoor unit above): 15 m
Operating limits (outdoor temperature): Cooling -10~+46 °C / Heating -15~+24 °C
Dimensions and weight:
Indoor unit without packaging HxWxD (mm) and weight (Kg) without packaging: CS-Z25CKEW: 295 × 870 × 229 mm 10 kg (for each unit)
Outdoor unit dimensions HxWxD (mm) and weight (Kg) without packaging: 795 × 875 × 320 mm 64 kg
Product code: KIT-Z25252525(68)
