Description

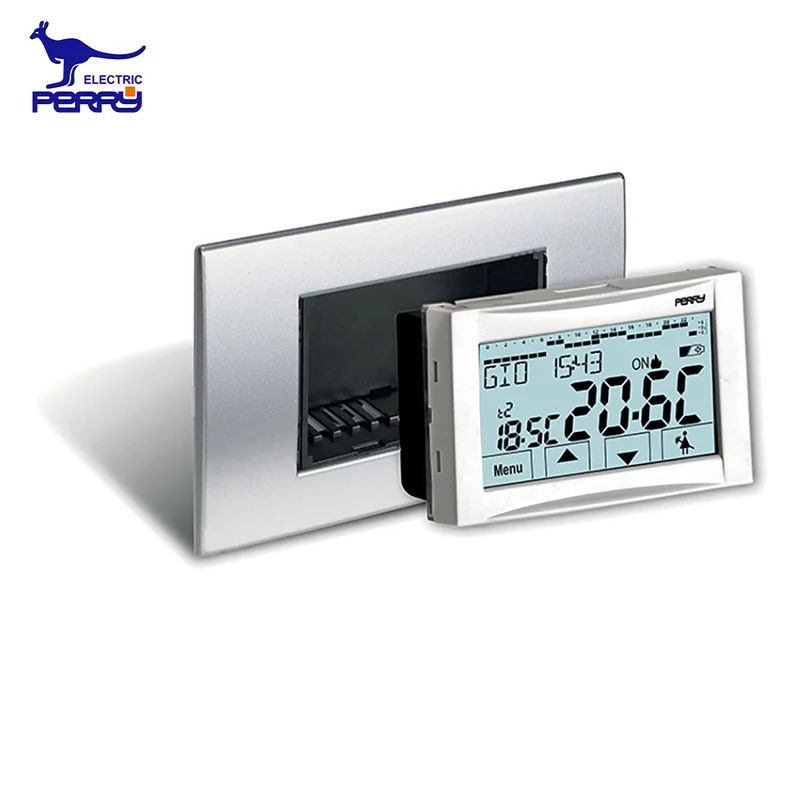

1CRCDS26 DIGITAL RECESSEDMOUNTING WEEKLY TIMER THERMOSTAT SERIES MOON TOUCH SCREEN
Cover plate not included
FEATURES:
Multilingual menu
Power supply 3 V 2×1.5 V AA alkaline batteries
Backlit LCD display TOUCH SCREEN
Includes three frontplates in the box: anthracite, white, silver
User and installer password
Antiscale cycle: with the pump activation function the thermostat automatically starts the pump or valve for two minutes each day, even when idle, to prevent buildup and seizing after long inactivity, eliminating risks at system reactivation
Eco mode: the thermostat anticipates shutoff by exploiting system thermal inertia, allowing significant energy savings
Cleaning suspension button: allows the system to be stopped for a preset time. Easy and wastefree: press the cleaning suspension icon and two hours of segments disappearsystem off
Temperature setpoint lock: for second homes, public environments, hotels, offices as well as domestic use, where its necessary to fix minimum and maximum temperatures to avoid heat theft or waste
Holiday program: for users away from home for several days, offers Countdown or Weekend functions that suspend operation for a preset period while keeping frostprotection temperature
Output 1 potentialfree changeover contact: 5(3) A/250 V AC
ON/OFF operation with adjustable differential 0.21.2 °C or modulating with control period 720 min
4 editable preset programs
3 temperature levels + frostprotection
Independent manual temperature mode
Temperature adjustable by 0.1 °C increments
Minimum programming interval 30 minutes
Permanent / temporary manual mode
Automatic daylight saving time change
Cleaning suspension key
Remote or telephone control input
Summer/Winter (EST/INV) switch
Holiday program
Pump activation program
Temperature setpoint lock
User password
Installer password
Timed backlighting
Relay status indication
Temperature reading correction depending on product positioning
Recessed mounting
Adjustment range 537.7 °C
Dimensions (W×D×H) 65 × 53 × 47 mm
COMPATIBLE FRONTPLATES INCLUDED
ABB Chiara
BTICINO: Light, LivingLight White, Light Tech, LivingLight Tech, Living, LivingLight Anthracite, Matix, Axolute Tech, Axolute Anthracite, Axolute White
VIMAR: Plana, Plana Silver, Eikon Grey, Eikon Next, Eikon White, Arké White, Arké Black
GEWISS: Chorus ONE/LUX/FLAT/GEO White, Chorus ONE/LUX/FLAT/GEO Black, Chorus ONE/LUX/FLAT/GEO Titanium
Product code: 1CRCDS26
