Description

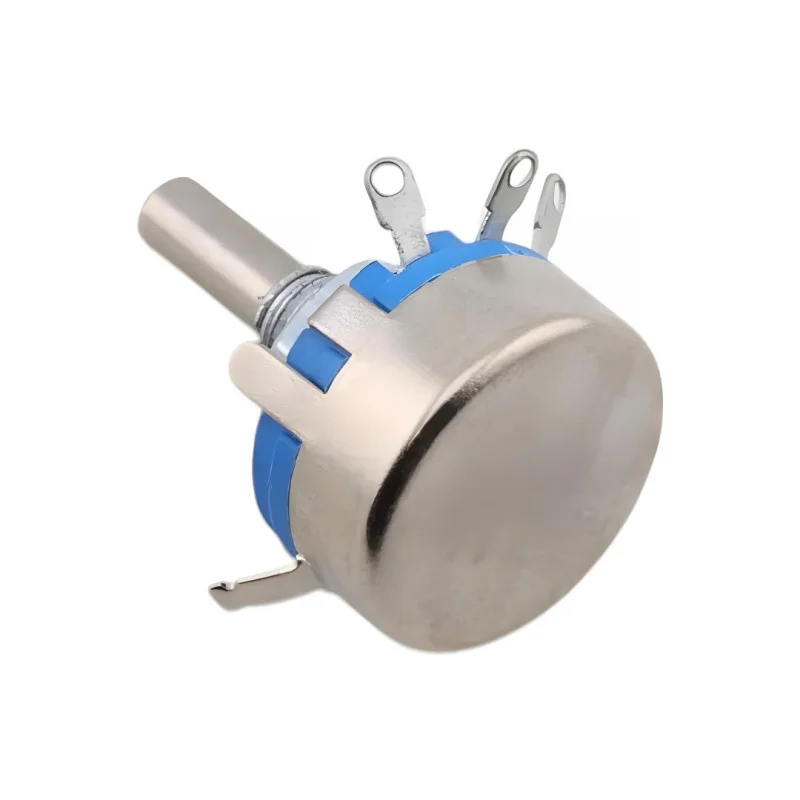

The WH5-1A potentiometer is a rotary variable resistor designed for continuous manual adjustment of electrical resistance in analog and control circuits. Thanks to the classic design with a shaft and three terminals, it is suitable for mounting in panels, device controls, laboratory devices and hobby electronics. The product is available in multiple resistance variants, which allows you to choose the appropriate design for a specific application.
Technical specifications
Type: rotary potentiometer
Model number: WH5-1A
Design: panel, with rotating shaft
Number of outlets: 3
Available resistance options: 470 Ohm to 1 MOhm
Well-known variants include: 470 Ohm, 1 kOhm, 1.5 kOhm, 4.7 kOhm, 10 kOhm, 22 kOhm, 47 kOhm, 100 kOhm, 220 kOhm, 470 kOhm and 1 MOhm
Mounting: threaded mounting into the panel using a nut
Shaft diameter: 6mm
Shaft length: 10mm
Technology: potentiometer for analog resistance control
Functions and features
Continuous resistance adjustment by turning the shaft
Three-terminal design allows use as a variable resistor and as a voltage divider
Compact design suitable for installation in equipment
Mechanical thread attachment facilitates front panel mounting
Wide range of resistance values for various types of circuits
Suitable for service, repair, development and production of electronic devices
Ideal for
Signal level control in analog circuits
Adjusting sensitivity, volume, reference levels or control parameters
Control panels for electronic devices
Laboratory, development and testing preparations
Repairs and replacements of original panel potentiometers
Package contents
1x potentiometer WH5-1A in the selected resistance variant
Why choose this product?
Standard rotary design with easy assembly
Multiple resistance values available within one product line
Universal use in a wide range of electronic applications
Three-pin design suitable for common potentiometer connections
Practical solution for new constructions and service replacements
Installation and operating instructions
When selecting a resistor value, consider the requirements of the specific circuit and the wiring method.
Before mounting, verify mechanical dimensions, shaft length and compatibility with the device panel
Solder the leads taking into account the thermal resistance of the component and avoid excessive mechanical stress.
For proper operation, we recommend use within the electrical limits specified by your device design.
