Description

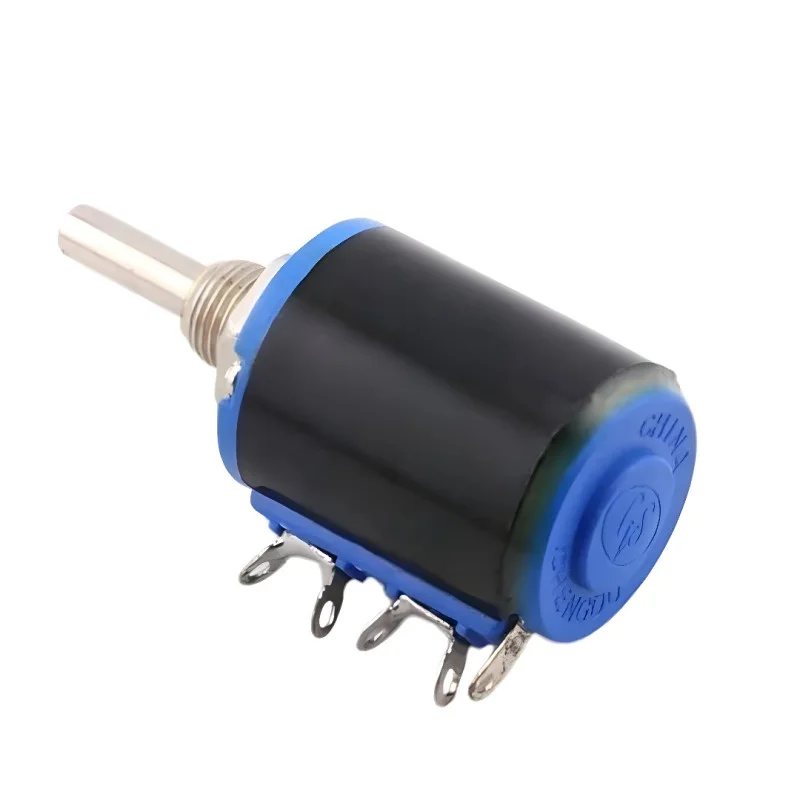

The WXD3-12 series wirewound potentiometer is designed for continuous resistance adjustment in measurement, control and industrial electronics. The design with a rotating shaft and wirewound resistance layer is suitable for applications where mechanical resistance, stable operation and reliable adjustment of electrical parameters are required.
Technical specifications
Model series: WXD3-12
Type: wire potentiometer
Rated power: 1 W
Available resistance variants: 100 Ohm, 220 Ohm, 470 Ohm, 1 kOhm, 2.2 kOhm, 3.3 kOhm, 4.7 kOhm, 10 kOhm, 22 kOhm, 33 kOhm, 47 kOhm
Resistance tolerance: ±5%
Operating temperature: -55°C to +125°C
Construction: panel, with shaft for manual adjustment
Functions and features
Wire resistance track for stable electrical properties and good load capacity.
Suitable for setting voltage, current or reference values in analog circuits.
The mechanical design with mounting thread allows for fixed installation in a panel or device.
The rotating shaft ensures precise and smooth manual adjustment.
The range includes multiple resistance variants for easy adaptation to a specific application.
Ideal for
Laboratory instruments and measuring equipment
Industrial control and regulation circuits
Power supplies and calibration circuits
Service and development electronic applications
Devices requiring a robust potentiometer with higher resistance than conventional carbon designs
Package contents
1x wire potentiometer WXD3-12 1W in the selected resistance variant
1x fixing nut
1x washer
Why choose this product?
The wire design is suitable for applications requiring stability and mechanical resistance.
A wide range of resistance values makes it easy to select for a specific connection.
Panel mounting with shaft is practical for integration into devices and control cabinets.
The operating temperature range allows use even in technically more demanding conditions.
The nominal power of 1 W is suitable for common control and adjustment tasks.
Installation and operating instructions
When selecting a resistor variant, it is necessary to take into account the required control range and power load in the circuit.
Install the potentiometer in such a way that there is no mechanical stress on the terminals or shaft.
For proper function, we recommend checking the connection of the end terminals and the runner before commissioning.
When soldering, it is advisable to limit the time of thermal stress on the pins to the necessary minimum.
Safety notice
The maximum permissible operating voltage must always be assessed with respect to the specific resistance value and power loss in the application.
If the component is used in circuits with hazardous voltage, installation must be performed by a qualified person.
When operating in devices with voltages above 60 V DC or in network applications, it is necessary to ensure adequate insulation, shielding and protection against touching live parts.
