Description

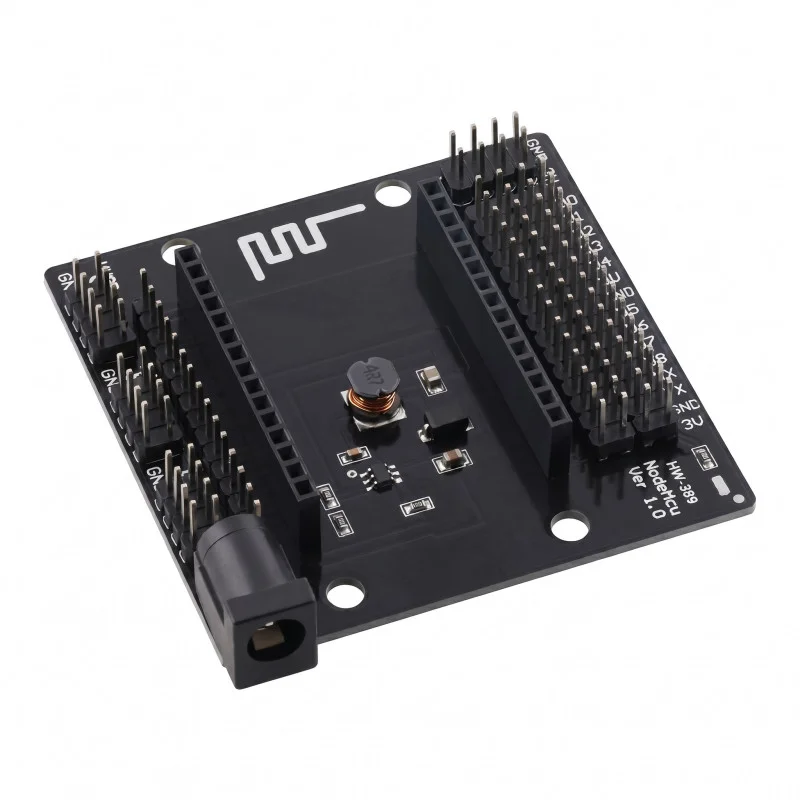

The power base for NodeMCU ESP8266 development boards serves as a backplane for mounting the module and bringing its pins out to accessible connector rows. The design with a DC power input facilitates powering and testing in laboratory, development and prototype applications. The board is designed to work with NodeMCU modules in a format corresponding to the layout of the sockets used on the base.
Technical specifications
Product type: module base/backplane for NodeMCU ESP8266
Power supply: DC power connector
Supported power supply according to product documentation: 6-24 V DC
Interface for mounting the module: a pair of sockets for inserting the NodeMCU development board
Signals output on pin strips: GND, 3V, D0, D1, D2, D3, D4, D5, D6, D7, D8, RX, TX
Additional power outlets on the side: USB, 5V, 4V, GND
Marking on the board: NodeMcu Base Ver 2.0
Board dimensions: 60 × 59.8 mm
Height: 16mm
Mounting holes: 4 pcs
Functions and features
It allows mechanical mounting of the NodeMCU module into sockets without directly soldering the module to the motherboard.
It outputs the module’s power and data pins to multi-pin headers for easy connection of peripherals and measurement equipment.
Includes a DC power input for external power supply to the base.
The board has an indicator LED that signals power.
The design with mounting holes allows for a firm attachment to the device or to a work surface.
The pin description is printed directly on the PCB for easier orientation when wiring.
Ideal for
development and testing of projects with NodeMCU ESP8266
prototyping IoT devices
laboratory and teaching use
connecting sensors, communication modules and other peripherals to the NodeMCU development board
Package contents
1x NodeMCU Base with DC input
Why choose this product?
It provides a clear pin layout of the NodeMCU development board into accessible connector rows.
It allows power supply from an external DC source without the need for separate power connections outside the base.
Mechanically attaching the module to the sockets simplifies board replacement during development and testing.
The compact design is suitable for workbenches, development fixtures and integration into prototypes.
Installation and operating instructions
Only install the NodeMCU module when the power is disconnected.
Before connecting an external power source, verify the polarity and input voltage range specified for this base.
When inserting the module, ensure the correct orientation of the pins relative to the sockets and the description on the board.
Connect the connected peripherals according to the markings of the individual pins on the PCB.
Safety notice
Incorrect power connection can cause damage to the base, the installed module and connected devices.
Do not short-circuit the power pins or data pins.
Operate the board in a non-conductive and dry environment.
When developing and integrating into a device, it is necessary to observe the correct electrical connection and load of individual pins according to the NodeMCU module used.
The product is intended for electronic development and prototyping; installation into the final device should be performed by a person with electronics knowledge.
