Description

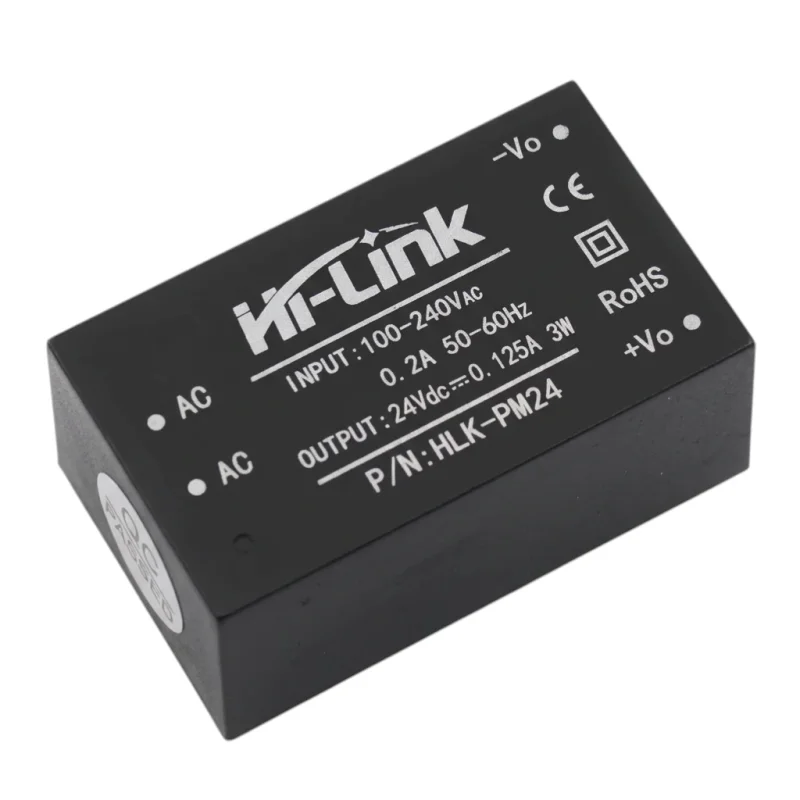

The Hi-Link HLK-PM24 power supply module is used to convert AC mains voltage to a DC output voltage of 24 V. It is a compact AC-DC module designed for integration into electronic devices, control circuits and other applications where a small integrated power supply with a galvanically isolated output is required.
Technical specifications
Model: HLK-PM24
Type: AC-DC power module
Rated power: 3W
Output voltage: 24 V DC
Output current: 0.125A
Input voltage: 100 to 240 V AC
Input voltage range: 90 to 264 V AC
Input frequency: 50 to 60 Hz
Design: isolated switching power supply module
Mounting design: module for installation in the device
Functions and features
Conversion of AC mains voltage to stabilized DC voltage for powering electronic circuits.
Compact closed design suitable for integration on a board or in a device.
The insulated design separates the input and output sections.
The modular design simplifies the design of a built-in power supply without the use of a separate mains transformer.
Intended for fixed installation as part of electronic equipment.
Ideal for
Built-in power supplies for electronic devices.
Control and automation modules.
Power supply for circuits requiring 24 V DC.
Industrial and hobby electronics in the design of mains-powered devices.
Package contents
1x Hi-Link HLK-PM24 power module
Why choose this product?
Clearly defined output parameters of 24 V DC and 0.125 A.
Wide input mains voltage range for universal use.
Insulated design suitable for built-in power applications.
Compact modular solution without the need to design your own power supply from scratch.
Installation and operating instructions
Only install the module in a device or enclosure that provides protection against touching live parts.
When designing the wiring, ensure the correct connection of the input AC terminals and output DC poles.
Ensure sufficient cooling and mounting conditions appropriate for the operation of the power module.
Perform installation with the power disconnected.
The product is intended for professional installation.
Safety notice
The module operates with a mains voltage of 100 to 240 V AC, which poses a risk of electric shock.
Incorrect connection may lead to a short circuit, overheating or damage to the connected device.
Do not cover the module with thermal insulation material or operate it in conditions that prevent heat dissipation.
Do not use after mechanical damage, exposure to moisture or insulation damage.
Installation and commissioning must be carried out by a person with appropriate electrical qualifications.
