Description

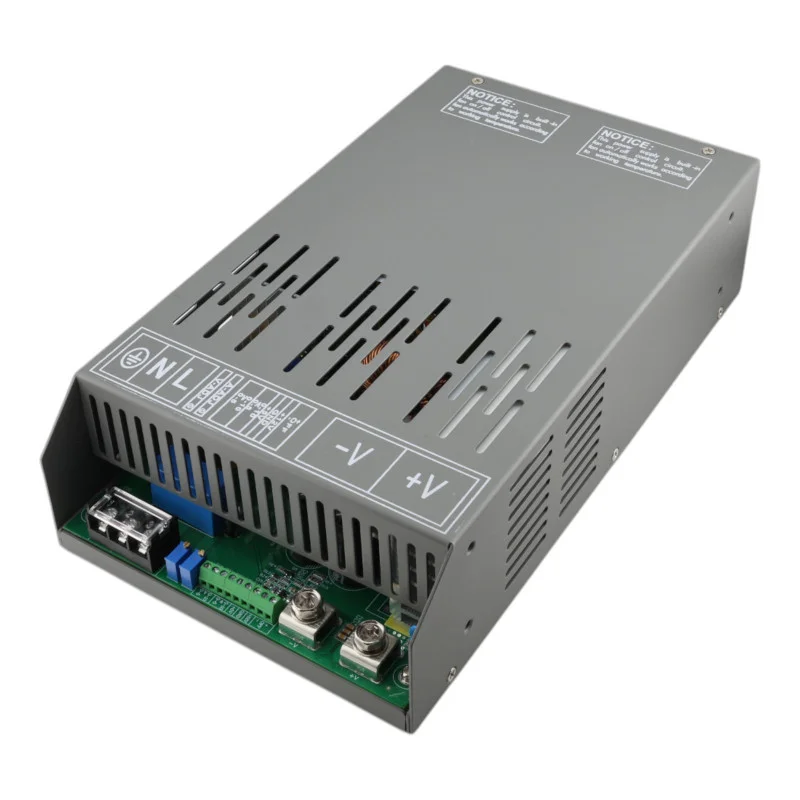

Introducing the IPS-SP-1500 series of highly reliable industrial switched-mode power supplies, designed for demanding applications requiring precisely regulated power. Each model offers smooth regulation of output voltage and current, allowing precise adaptation to the requirements of your applications. These robust power supplies in metal design with IP20 protection are ideal for integration into distribution cabinets and industrial systems.
Key Features:
Variable output voltage: Smoothly adjustable from 0 V to 24 V DC using a precise adjustment trimmer
High output current: Stable 62.5 A for demanding applications
Wide input voltage range: 180264 V AC, 4565 Hz
High efficiency: 86% for economical operation with minimal heat loss
Active cooling: Ensures optimal operating temperature even at high load
Comprehensive Protective Functions:
Overload protection (105%150%)
Overvoltage protection
Short circuit protection with automatic recovery
Thermal protection at 70 °C with automatic recovery when falling below 50 °C
Practical Design:
Standard terminal block with screws for easy connection
LED indicator for visual power check
Durable metal construction ensuring long service life
Advanced Control Features:
External potentiometer: Option for remote control of voltage and current
Analog voltage control: Supports 05 V / 010 V control signal
Auxiliary power output: 12 V 0.5 A for powering external devices
Remote switching: Default state on, off by high level (3 V12 V)
Ideal Applications:
Automation systems: Control of industrial processes and production lines
Servo drives and motors: Precise power control for various drives
Telecommunications equipment: Reliable power supply for critical communication systems
Industrial control systems: Stable power supply for PLCs and other control elements
Testing and measuring equipment: Precise power supply for laboratory and testing applications
Input gates and security systems: Uninterruptible power supply for security elements
Technical Specifications:
Input voltage: 180264 V AC, 4565 Hz
Output voltage: 024 V DC
Output current: max. 62.5 A (24 V DC)
Output voltage accuracy: ± 1.0%
Regulation with input voltage change: ± 1.0%
Regulation with load change: ± 1.0%
Efficiency: 86%
Startup time: 1500 ms, 100 ms at 230 V AC (full load)
Output voltage ripple: 2001000 mV (depending on model)
Insulation resistance: 100 M at 500 V DC (25 °C, 70% RH)
Dielectric strength: I/P-O/P: 1.2 kV AC, I/P-FG: 1.2 kV AC, O/P-FG: 0.5 kV AC
Operating temperature: -20 °C to +60 °C
Operating humidity: 090% RH (non-condensing)
Vibration resistance: 10500 Hz, 2 G (tests 10 min/cycle, axes X, Y, Z for 60 min.)
Dimensions: 277 × 155 × 70 mm (L × W × H)
Weight: 2.4 kg
