Description
The 600mA constant current power supply is designed for powering LED modules and high-power LEDs in arrays of 18 to 30 pieces of 3W each. The product serves as an LED driver for stable current supply and is suitable for lighting applications requiring a DC output in the corresponding range. The metal casing and IP67 protection expand the possibilities of use even in demanding environments.
Technical Specifications
Product type: LED driver / LED power supply
Output mode: Constant current
Rated output current: 600 mA
Current tolerance: ±5%
Wiring variant: 1830x 3W LEDs
Power range: 3060 W
Input voltage: 85277 V AC
Input frequency: 50/60 Hz
Output voltage: 45100 V DC
Protection rating: IP67
Efficiency: 90%
Power factor: 0.95
Dimensions: 117 × 37 × 29 mm
Weight: 200g

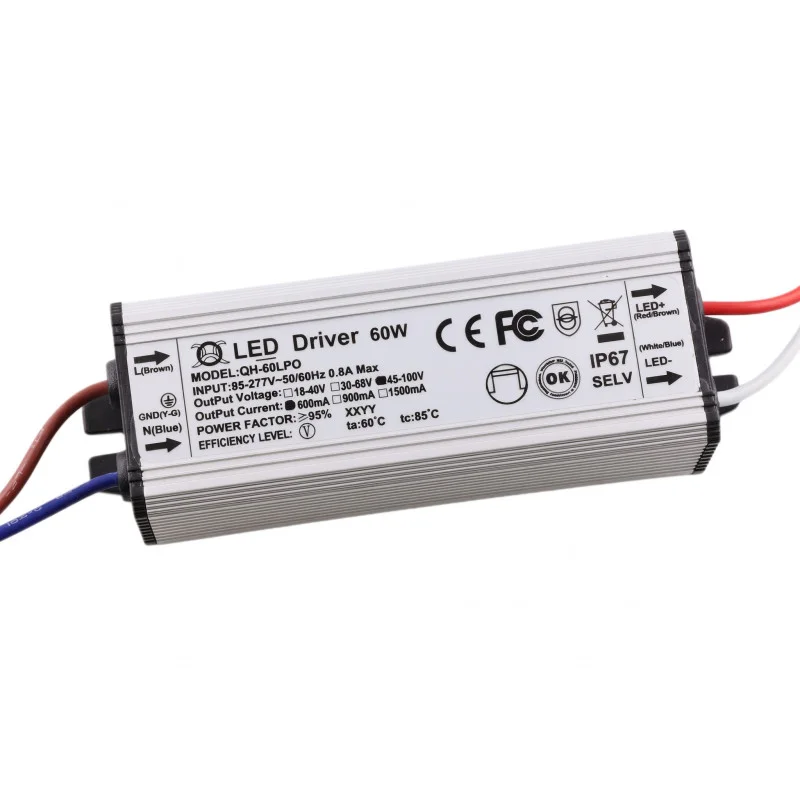

Model: QH 600mA LED Driver
Certification: CE, RoHS, CCC
Features and Properties
The power supply is designed for current-driven LED loads with a nominal current of 600 mA.
The wide input range design allows use in networks with voltages from 85 to 277 V AC.
The DC output range of 45 to 100 V corresponds to the series connection of LEDs in the specified 1830x 3W configuration.
The metal body supports heat dissipation during operation.
IP67 protection is designed for installations requiring increased resistance to dust and water ingress.
The connection is made via wire leads without a mains plug and without output connectors.
Ideal for
Powering series-connected 3W high-power LEDs.
LED luminaires, light modules, and technical lighting solutions with a constant current of 600 mA.
Built-in installations and repairs of LED lighting where a wide input range and a higher degree of protection are required.
Package Contents
1x LED power supply 600 mA
Why Choose This Product
Constant current of 600 mA for LED applications requiring current-driven power.
Wide AC input range of 85277 V.
DC output range of 45100 V for 1830x 3W LED arrays.
IP67 protection for demanding operating conditions.
Compact dimensions and wired connection for integration into luminaires and technical assemblies.
Installation and Operating Instructions
Before connecting, verify that the powered LED load matches the 600 mA output current and the operating range of the output voltage.
Connect the power supply only to an LED load designed for constant current.
Ensure correct connection of the input and output wires.
Perform the installation with the mains voltage disconnected.
Ensure the installation does not mechanically stress the cable outlets and prevents damage to the wire insulation.
Safety Warnings
The product operates with an AC mains voltage of 85277 V. Risk of electric shock.
Installation and wiring must be performed by a person with appropriate electrical qualifications.
Incorrect connection of the LED load or a short circuit at the output may damage the power supply or connected LEDs.
Do not install the product if the casing, wires, or insulation are damaged.
During operation, ensure conditions correspond to the intended use and do not exceed the declared power range.
