Description

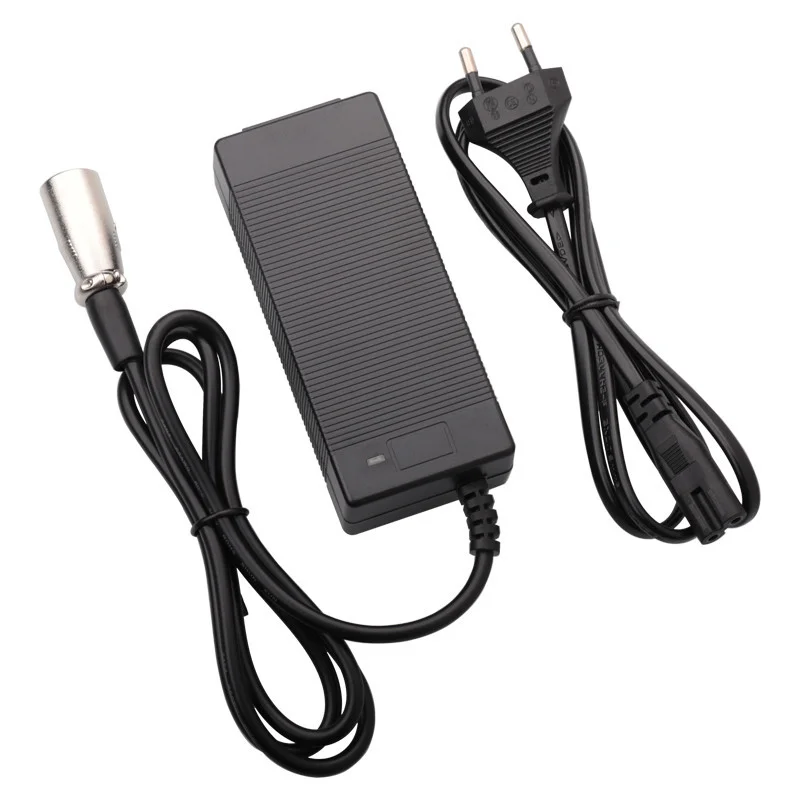

Intelligent mains charger designed for 36V lead-acid batteries with a final charging voltage of 43.2 V. It uses automatic CC/CV charging mode, LED status indication and a complete set of protection features. Thanks to the wide input range of 100240 V AC, it is suitable for universal use in Europe and other regions.
Technical specifications
Input voltage: 100-240V AC, 50/60Hz
Output voltage: 36 V DC (charging voltage 43.2 V)
Output current: 2 A
Maximum power: 84W
Connector: XLR 3-pin (polarity: pin 1 +, pin 2 )
Connector diameter: 18 mm
Status indication: red (charging), green (fully charged)
Operating temperature: up to 60 °C
Housing: ABS plastic, self-extinguishing
Color: black
Protection: IP20
Weight: 420g
Functions and features
Automatic CC/CV charging mode for gentle charging
Fully automatic termination of charging when full state is reached
LED indication of charging progress and completion
Overvoltage Protection (OVP)
Overcurrent Protection (OCP)
Overload Protection (OLP)
Short Circuit Protection (SCP)
Slow current ramp-up for longer battery life
Ideal for
36 V lead-acid batteries (e.g. electric scooters, wheelchairs, backup power supplies)
Service and maintenance charging of SLA / AGM / GEL batteries
Home and professional use
Instructions for use
Before starting charging, check that the charger is designed for a 36V lead-acid battery with a charging voltage of 43.2V.
First connect the charger connector to the battery, then plug the charger into a 230 V mains socket.
Once connected, the red LED will light up to indicate charging is in progress.
Once the battery is fully charged, the LED will turn green.
After charging is complete, first unplug the charger from the mains and then disconnect the connector from the battery.
Only use the charger in a dry and well-ventilated environment.
The charger is intended for use with lead-acid batteries (SLA, AGM, GEL) only. Do not use it for lithium-ion or LiFePO batteries.
Package contents
1× charger 36 V / 2 A
1× EU power cord
Why choose this product?
Optimized directly for 36V lead-acid batteries
Safe operation thanks to complete protection of electronics and battery
Easy to use with no setup required
Compact dimensions and low weight
Reliable XLR connector with fixed polarity
