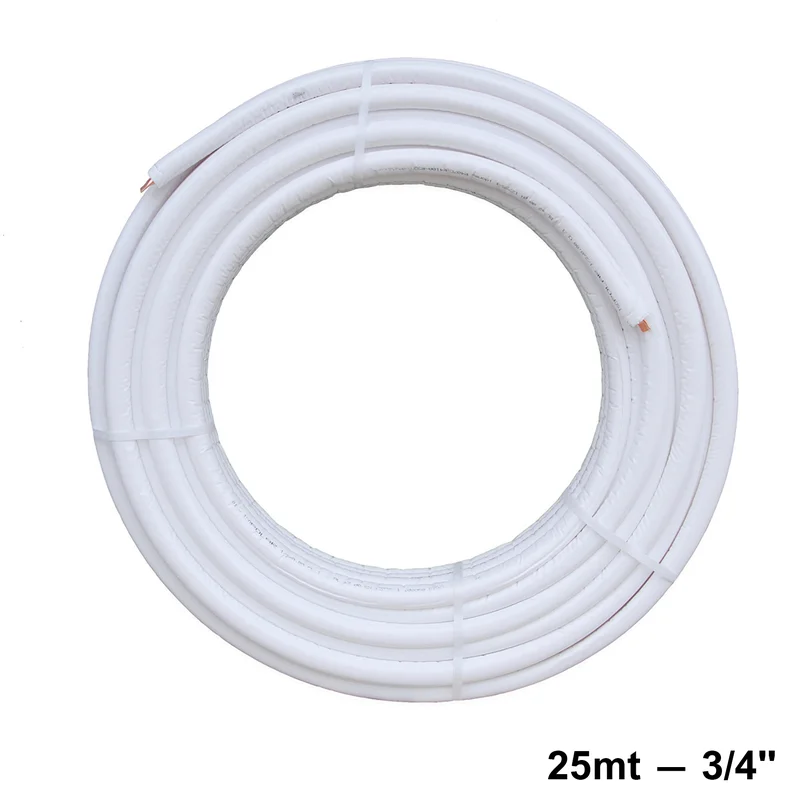

Pre-insulated Copper Roll 25 m 3/4 for Air Conditioning-Spedizione veloce

Description

Copper Roll 25 m Ø 3/4” – 19.05 mm
for air conditioning and refrigeration systems
SUITABLE FOR GAS R32 – R410A – R407C – R22…
Copper Tube Features:
ACR annealed (R220), mechanical characteristics, dimensions, tolerances, and eccentricity comply with UNI EN 12735-1 standards.
Suitable for refrigerants R32, R407C, and R410A, with internal cleaning and dehumidification using inert gas with a maximum overall residue of 0.034 g/m² and sealed ends as per ASTM B280.
Insulation:
Physical closed-cell cross-linked polyethylene foam with the following technical values:
Thermal conductivity at 40°C 0.040 W/m*K
Water vapor diffusion resistance factor (anti-condensation) 10000
Fire reaction class 1
Usage temperature -80°/+120°C
Does not contain CFCs
Extruded polyethylene (LDPE) outer film, white color, flame-retardant additive, adhering to foam to ensure high anti-condensation properties, excellent resistance to abrasion and tearing.
Technical Specifications:

Alloy: Copper min. CU-DHP 99.9

Standard EN 12735-1

Tube diameter: 3/4” – 19.05 mm

Tube thickness: 1 millimeter

Roll length: 50 meters

Insulation:

Material: polyethylene foam (LDPE)

Insulation thickness: 10 mm

Color: White

Self-extinguishing: class 1

Product code: CI.TR3/4
