Pre-insulated Copper Roll 25 m 7/8 – Conditioning and Refrigeration-Spedizione veloce

Description

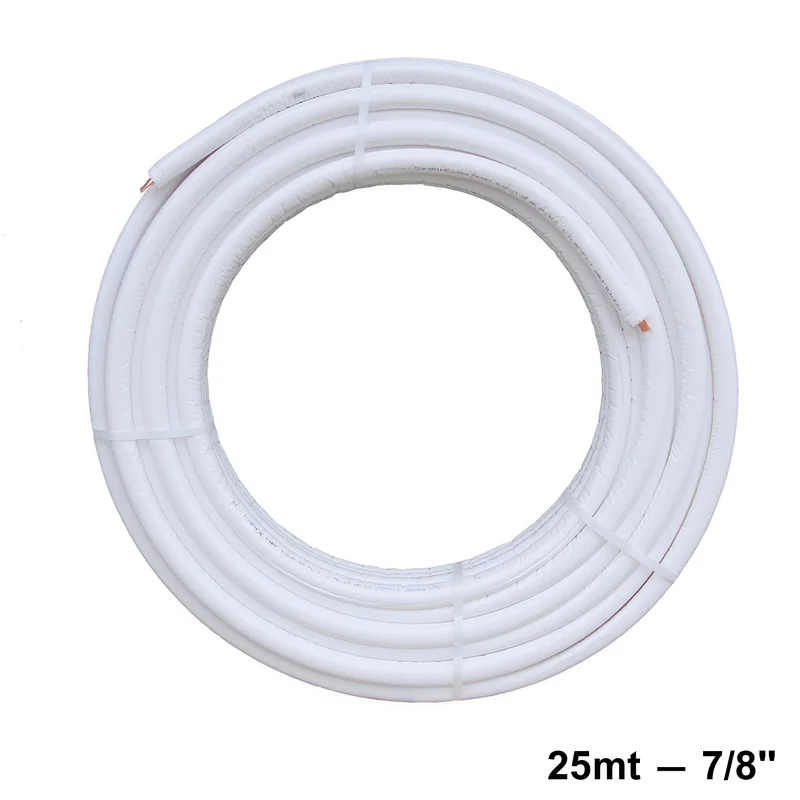

Copper Roll 25 m Ø 7/8′ – 22.23 mm
for air conditioning and refrigeration systems
SUITABLE FOR GAS R410A – R407C – R22 – R404a…
Characteristics:

Copper Tube

ACR annealed (R220), mechanical properties, dimensions, tolerances, and eccentricities comply with UNI EN 12735-1 standards.

Suitable for refrigerants R407C and R410A, with internal cleaning and dehumidification using inert gas with a maximum overall residue of 0.034 g/m² and sealed ends as per ASTM B280.

Insulation
Cross-linked polyethylene foam jacket with the following technical values:
Thermal conductivity at 40°C 0.040 W/m*K
Water vapor diffusion resistance factor (anti-condensation) 10000
Fire reaction class 1
Operating temperature -80°/+120°C
Does not contain CFCs
External film in extruded polyethylene (LDPE) color white, with flame retardant additives, adhering to the foam to ensure a high degree of anti-condensation, excellent abrasion and tear resistance.
Technical Specifications:

Alloy: Copper min. CU-DHP 99.9

Standard: EN 12735-1

Tube Diameter: 7/8′ – 22.23 mm

Tube Thickness: 1 millimeter

Roll Length: 25 meters

Insulation:

Material: polyethylene foam (LDPE)

Insulation Thickness: 10 mm

Color: White

Self-extinguishing: Class 1

Product Code: CI.TR7/8
