Description
Proportional ON/OFF thermostat

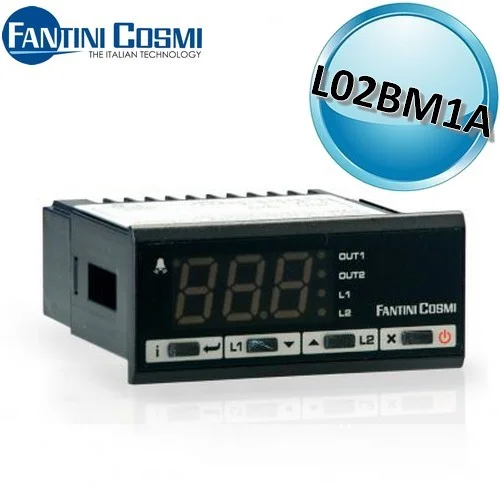

Fantini Cosmi L02BM1A
1 output – probe included
Power supply: 230Vac
Description
For heating or refrigeration systems with 1 output and 1 probe.
Electrical characteristics
Output on single-pole relay with deviation
Contact rating: 16(4)A 240 Vac
Consumption: 2 W
Standards and approvals
EN60730-1, EN60730-2-9, EN55022 (Class B), EN50082-1
Features
Input: NTC 10k
Configurable parameters:
– Refrigeration or heating function by assigning positive or negative sign to the differential
– Minimum or maximum setpoint limits
– ON or OFF status of the output in case of a defective probe
– Minimum OFF time of the output
Operating temperature: -10 ÷ 50°C
Protection rating IP55 if correctly installed with panel gasket
Front ON/OFF button for simple and intuitive use.
Product code: L02BM1A
