Roll of pre-insulated copper 50 m 5/8 for conditioning and refrigeration-Spedizione veloce

Description

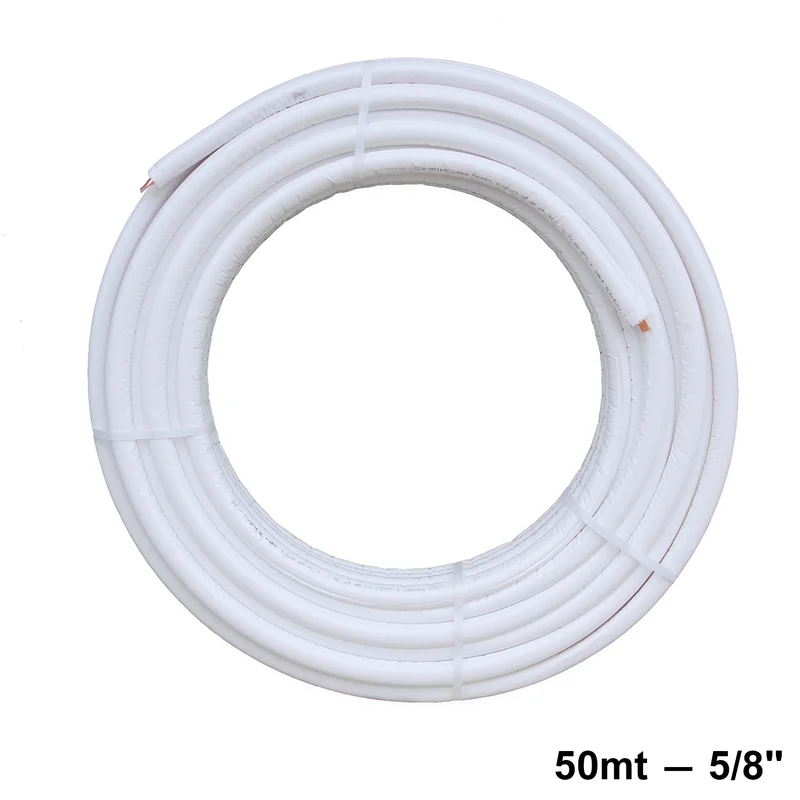

Roll of Copper 50 m Ø 5/8′ – 15.88 mm
for air conditioning and refrigeration systems
Suitable for gases R410A – R407C – R22 – R404a…
Specifications:

Copper Tube:

ACR annealed (R220), mechanical properties, dimensions, tolerances, and eccentricity comply with UNI EN 12735-1 standard.

Usable with refrigerants R407C and R410A, internally cleaned and dehumidified with inert gas with a maximum residual of 0.034 g/m² and sealed ends as per ASTM B280.

Insulation:
Cross-linked polyethylene foam with the following technical values:
– Thermal conductivity at 40°C 0.040 W/m*K
– Water vapor diffusion resistance factor (anti-condensation) 10000
– Fire reaction class 1
– Operating temperature -80°/+120°C
– Does not contain CFCs
External film in extruded polyethylene (LDPE) white, additive with flame retardant, adheres to the foam to ensure a high anti-condensation level, with excellent resistance to abrasion and tearing.
Technical Specifications:

Alloy: Copper min. CU-DHP 99.9

Standard EN 12735-1

Tube Diameter: 5/8′ – 15.88 mm

Tube Thickness: 1 mm

Roll Length: 50 meters

Insulation:

Material: polyethylene foam (LDPE)

Insulation Thickness: 10 mm

Color: White

Self-extinguishing: Class 1

Product Code: CI.TR5/8
