Description

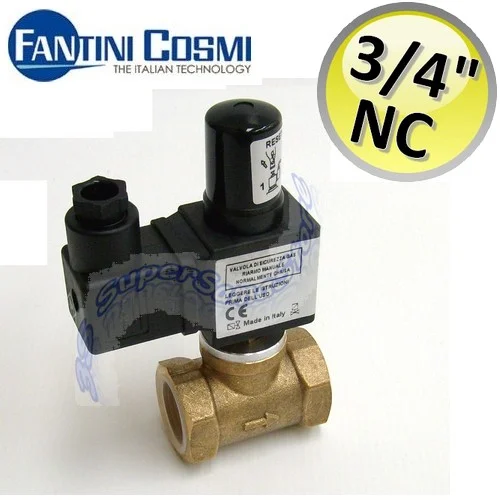

Gas Safety Solenoid Valve
3/4” – Brass Body – Manual Reset – Normally Closed – ZDVGRM20NC – Fantini Cosmi
Electrical Specifications
Nominal Voltage: 230V AC 50/60Hz
Standards and Certifications
Compliant with EN 161 and EN 60529 standards
Installation
Ensure alignment between the flow direction and the arrow embossed on the valve body. Check the correct alignment of the connecting pipes and maintain a distance from walls to allow free air circulation. The valve can be mounted with the coil in either horizontal or vertical position. The coil can also be oriented in any direction within 360°. Install in a protected area away from rain, splashes, or drips. For electrical connections, remove the connector cover and connect the power cables to the rectifier circuit terminals.
Features
– Connections: Threaded gas ISO 7/1 from RP 1/2 to RP 2
Flanged PN16 ISO 7005 from DN65 to DN100
– Voltage Tolerance: -15% / +10%
– Ambient Temperature: -15°C / +60°C
– Operating Pressure: 500 mbar Max.
– Closing Time: < 1 second
– Protection Rating: IP 65
– Cable Gland: PG 9
– Pressure Ports: G1/4” on two sides (excluding brass body models)
– End Limit Switch: Available on request from 3/4” to 4”
– Gas Type: Air and non-aggressive gases (EN 437)
– Filter: 600 m (excluding brass body models)
Product Code: ZDVGRM20NC
