Description

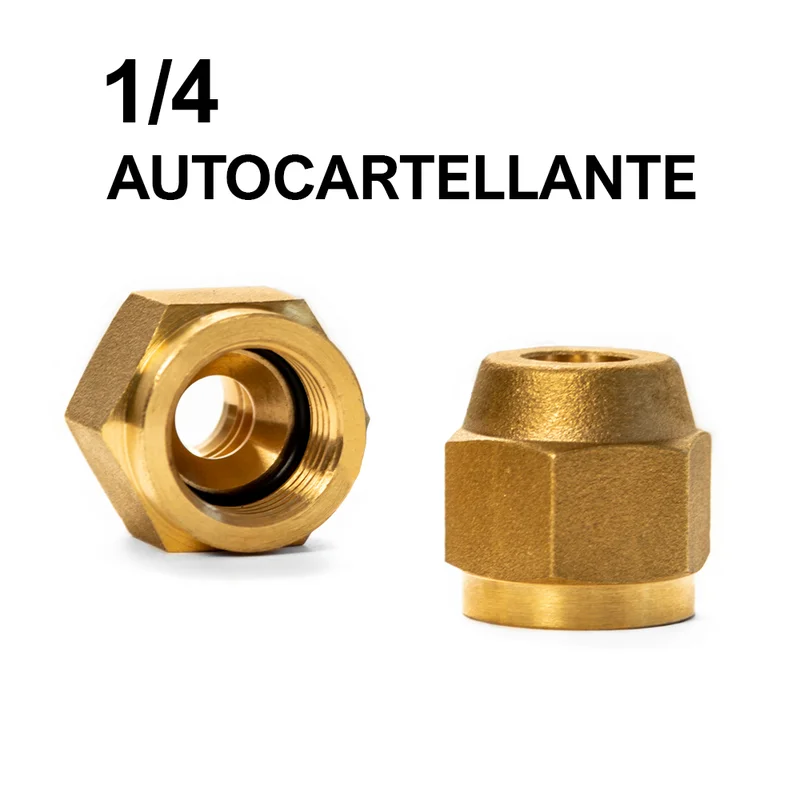

Self-sealing connector 1/4′
Prevents flaring and eliminates leakage risks
The metal seal and operating pressure up to 140 bar make this product particularly suitable for refrigeration and air conditioning systems using new environmentally friendly refrigerants. It is used to connect pipes, valves, tanks, and line components. The biting ring acts like a clamp on the outer surface of the pipe to resist pressure and provide an effective seal.
Features:
– Fluid temperature: from -40°C to +150°C
– Maximum working pressure: 140 bar
– Compatible with traditional 45° flared fittings
– No need to flare or calibrate the end of the pipe, nor use a torque wrench
Approvals:
– CE (PED, RoHS, REACH), EAC
– Performance exceeds the requirements of DIN 8912 and SAE J513 for traditional 45° flared fittings
– Patented system
Product code: 11393
