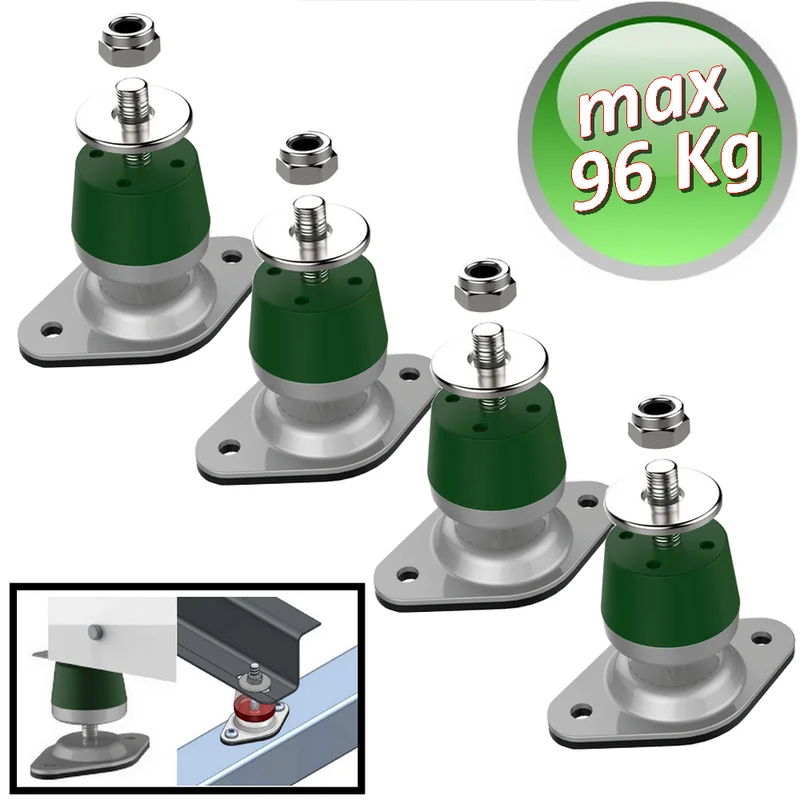

SE-CRV-20 – ADJUSTABLE BASE ANTI-VIBRATION MOUNT IN MEGOL
Max capacity 96 Kg. Green color – 4 pieces
Features:
Next-generation damper for supporting base-mounted outdoor units, with a single 8 mm threaded outlet, the corresponding nut to secure the unit, and a height adjustment system (‘CFR’) that makes it unique.
The ability to adjust the height allows for an even distribution of the machine’s weight, preventing uneven load due to ground imperfections.
Its special megol composition offers top-tier damping power in vibration control and greater resistance to aging and cracks caused by micro-fractures.
Ideal for machines operating from 1250 rpm.
Application field:
Designed to support and eliminate acoustic and vibro-mechanical pollution from the machine’s self-supporting structure, ensuring performance and safety.
Intended for use in domestic or semi-industrial air conditioning units such as: chillers, fans, hoods, condensers, etc.
Resonance frequency of 7-15 Hz.
Available in 4 hardness levels based on performance and applied load.
Anti-vibration height: 80 mm
Load capacities:
Grey color: loads between 4 – 12 Kg per piece;
Green color: loads between 9 – 24 Kg per piece;
Blue color: loads between 15 – 35 Kg per piece;
Red color: loads between 30 – 50 Kg per piece.
Product code: SE-CRV-20
