Description
Meter – quick-installation shut-off tap 1/2″ Supplied with adapter and extension kit
Description:

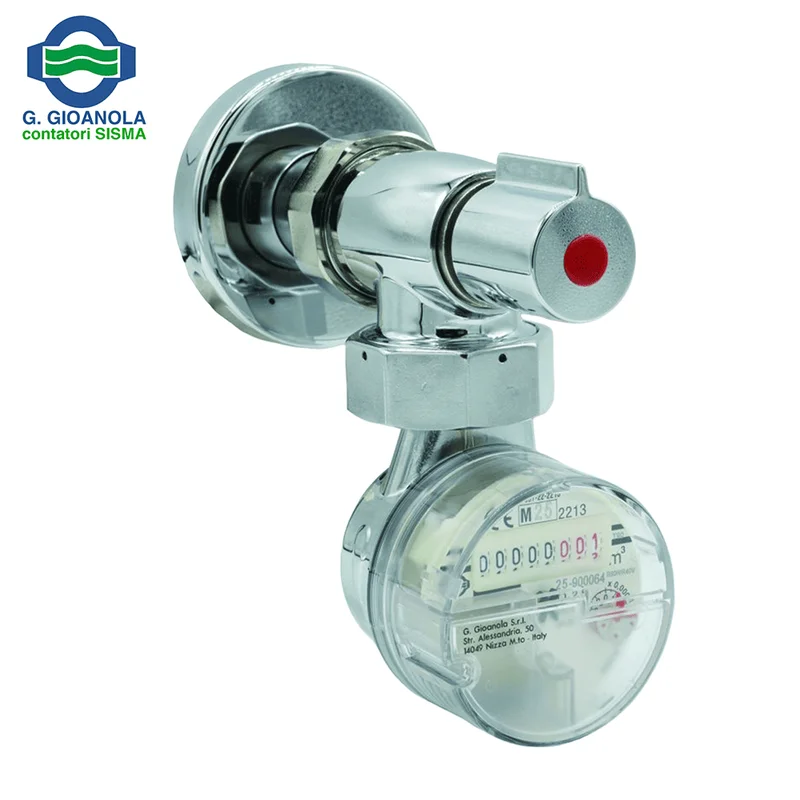

Meter – chrome-plated quick-installation tap consisting of a single-jet meter model SIMPLEX R80 DN 15, temperature class T90, measuring range R80 and shut-off tap. Ideal for measuring water consumption in residential environments, it allows precise metering of the water used by each individual housing unit.
Available in versions with 1/2″ and 3/4″ connection, it is designed to be easily inserted into the headwork seat of an existing built-in tap without breaking walls and tiles, making it a practical and fast solution for replacements and system upgrades.
The direct reading with 8 numbered rollers, the dry dial adjustable by 360° and the provision for Wireless M-Bus radio module and M-Bus cable for remote reading make it a modern, functional solution suitable for both the bathroom and the kitchen. The model is MID approved according to the current Directive (module B+D), in compliance with EN 14154 and OIML R49 standards.
Technical info:
model: SIMPLEX R80 DN 15
temperature class: T90
measuring range: R80
connection: 1/2″
type: single-jet meter with shut-off tap
direct reading: 8 numbered rollers
installation position: adjustable by 360° with respect to the centre of the tap
dial: dry, adjustable by 360°
provision: Wireless M-Bus radio module and M-Bus cable for remote reading
permanent flow rate Q3: 2,5 m³/h
overload flow rate Q4: 3,125 m³/h
transition flow rate Q2: 50 l/h
minimum flow rate Q1: 31.5 l/h
registration dial: from 0,0001 to 99.999 m³
maximum operating pressure MAP: 16 bar
complete unit weight: 1,500 kg
kit available on request: SIMPLEX KIT with meter tap, threaded adapters and seat depth extensions
installation notes: suitable for flush-mounted bodies of existing built-in taps; cannot be installed on valves, ball taps and quick-flow taps
Product code: R10SC97CMZ06
