Single-pipe air conditioner installation kit 10m of 1/4 1/2 copper pipe with wall bracket-Spedizione veloce

Description

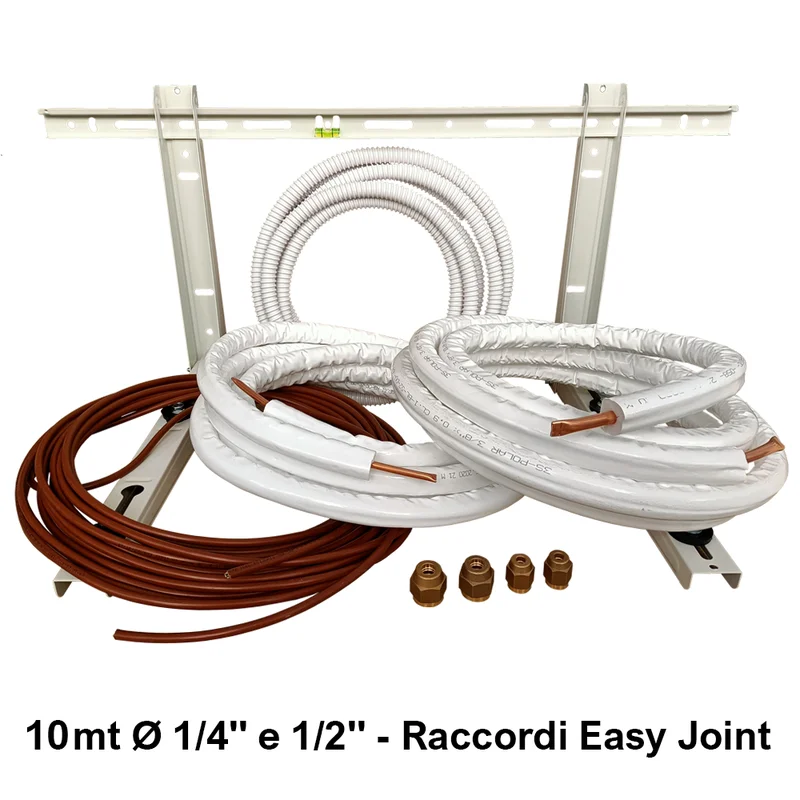

SPLIT AIR CONDITIONER INSTALLATION KIT
10 m of ¼” pre-insulated copper tubing
2 ¼” flare connectors
10 m of ½” pre-insulated copper tubing
2 ½” flare connectors
10 m of condensate pipe
10 m of 4×1.5 four-conductor cable
1 bracket for individual outdoor unit (105 kg)
Copper tubing specifications: Annealed ACR (R220), mechanical properties, dimensions, tolerances, and eccentricity conform to UNI EN 12735-1.
Suitable for R407C and R410A refrigerants, internal cleaning and dehumidification with inert gas with a maximum total residue of 0.034 g/m², and ends sealed according to ASTM B280.
Insulating Cover
Insulating cover manufactured with physically cross-linked, closed-cell expanded polyethylene, with the following technical characteristics:
Thermal conductivity at 40 °C 0.040 W/m·K
Water vapor diffusion resistance factor (anti-condensation) 10,000
Fire reaction class 1
Operating temperature: -80 °C/+120 °C
CFC-free
A white, low-density polyethylene (LDPE) outer film, with a flame-retardant additive, is bonded to the foam to ensure high anti-condensation performance and excellent abrasion and tear resistance.
SUPPORT FEATURES:
Load capacity: 105 kg
2 safety locks to prevent loosening
Includes spirit level
2 anti-vibration mounts for placement between the brackets and the wall
3 anchors with screws and washers
4 anti-vibration feet for placement between the air conditioner and the brackets for perfect sound insulation
SELF-FRAMING CONNECTOR FEATURES:
The metal gasket and operating pressure of up to 140 bar make this product especially suitable for refrigeration and air conditioning systems using new, low-impact refrigerants, for connecting pipes, valves, tanks, and general line components.
The clamping ring acts as a clamp on the outer surface of the pipe to withstand pressure and create an effective seal.
Features:
Fluid temperature: -40°C to +150°C
Maximum working pressure: 140 bar
Compatible with traditional 45° flare fittings
No calibration, pipe end flaring, or torque wrench tightening required. Approvals:
CE (PED, RoHS, REACH), EAC
Performance exceeds the requirements of DIN 8912 and SAE J513 standards for traditional 45° flare fittings.
Patented system.
CONDENSATE DRAIN HOSE FEATURES:
For concealed or duct installation.
UV-resistant HDPE.
ELECTRICAL CABLE FEATURES:
Four-conductor cable for 220V single-phase power supply for air conditioning.
Product code: KI.10.1/4-1/2
