Description

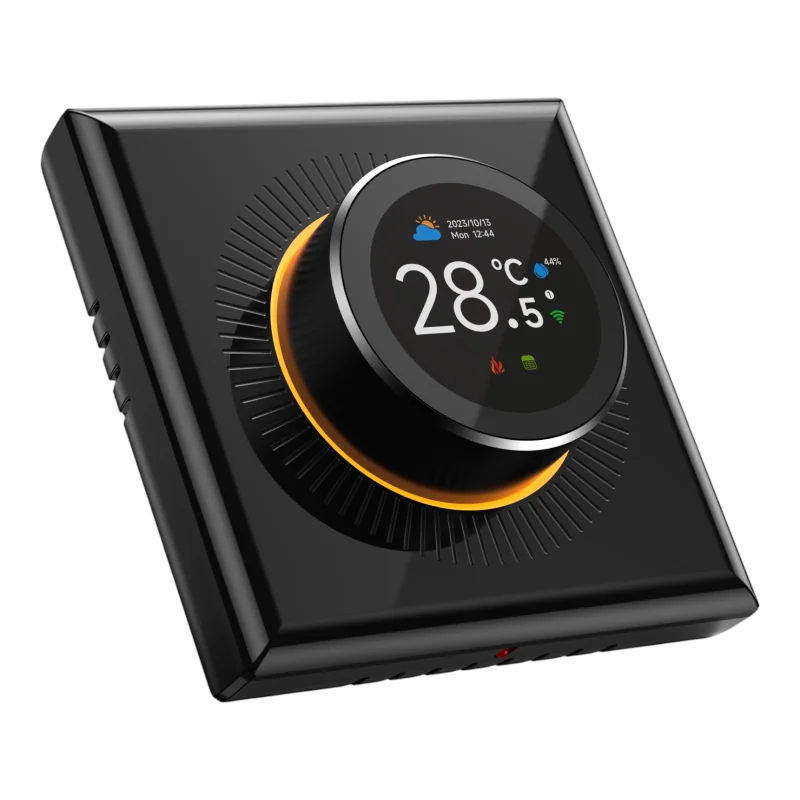

Smart WiFi thermostat with rotary control is designed to control electric underfloor heating. It allows you to set the temperature directly on the device and remotely via a mobile application. The design with a circular display shows the current temperature and heating status. The thermostat is suitable for installation in homes, offices and other interior spaces with standard electrical installations.
Technical specifications
Heating system type: electric underfloor heating
Supply voltage: 95-240V AC, 50-60Hz
Maximum relay load: 16 A
Temperature setting range: 5-35°C
Temperature measurement range: 599 °C
Control accuracy: ±1 °C
Thermostat power consumption: < 1.5 W
Control type: rotary knob
Temperature sensor: internal + external NTC sensor
Protection: IP20
Material: flame retardant PC plastic
Front panel dimensions: 86 × 86 mm
Installation depth: 41 mm
Dimensions of the installation part: 60 × 50 mm
Weight: 261g
Color options: white, black
Functions and features
Built-in WiFi module for remote control via mobile app
Color display showing current temperature and heating status
Rotary knob for direct and quick adjustment
Support for external floor temperature sensor
Switching capacity 16 A for electric heating circuits
Installation in standard electrical installation boxes
Design suitable for integration into smart home systems with WiFi control
Ideal for
Electric underfloor heating in bathrooms
Electric underfloor heating in living rooms
Apartments and family houses
Offices and hotel rooms
Reconstruction and new installations
Package contents
WiFi thermostat 16 A
External floor temperature sensor NTC
Mounting accessories
Why choose this product?
Designed for direct control of electric underfloor heating with a load of up to 16 A
Combination of local control and remote access via WiFi
Support for internal and external temperature measurement
Control accuracy ±1 °C
The construction dimensions correspond to common installation boxes in the EU
Available in two color options to match your interior
Installation and operating instructions
The thermostat is designed for fixed installation in an electrical installation box.
For proper regulation of underfloor heating, connect an external NTC sensor according to the product specification.
Before commissioning, check that the current load of the heating circuit does not exceed 16 A.
Install the device only in a dry indoor environment within the IP20 protection range.
Safety notice
The device operates with a voltage of 95240 V AC. The power circuit must be disconnected from the mains before assembly or disassembly.
Installation and connection should be carried out by a qualified person.
Incorrect wiring may cause electric shock, short circuit or damage to the thermostat and heating circuit.
Do not exceed the maximum relay load of 16 A.
The thermostat is not intended for outdoor use or in environments with increased humidity without adequate protection.
