SNRLC1D18M7 Contactor TeSys LC1D – 3 Pole – AC3 440V 18 A – 220 V AC-Spedizione veloce

Description

SNRLC1D18M7 TESYS LC1D CONTACTOR – 3 POLES – AC3 440V 18 A – 220 V AC Description:

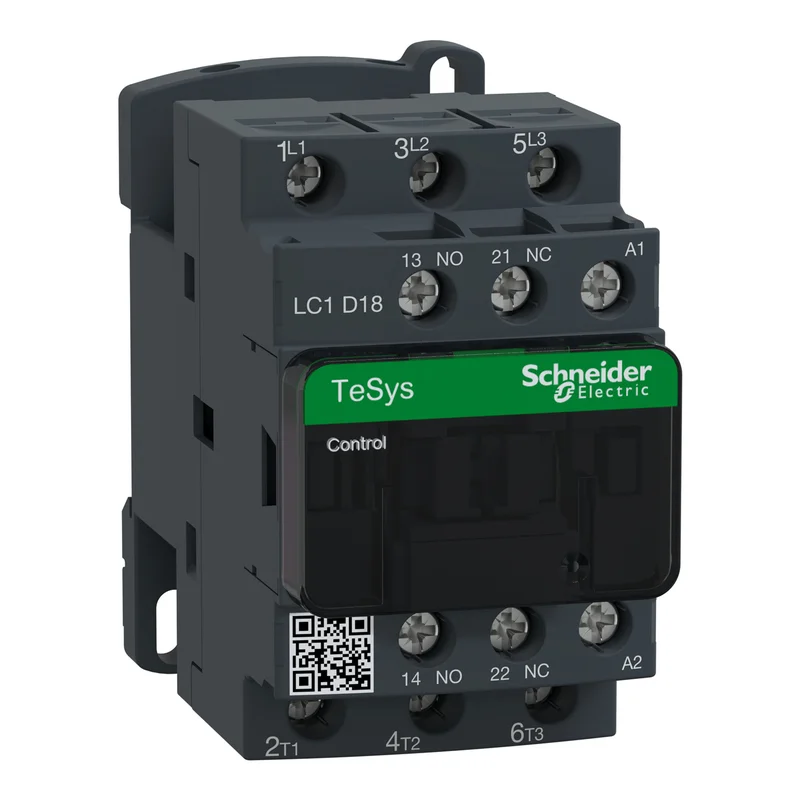

LC1D18M7 is a 3-pole TeSys D contactor by Schneider Electric for motor applications up to 7.5 kW at 400 V. It includes a 220V AC coil at 50/60 Hz and integrated 1NO+1NC auxiliary contacts, and it can be used in safety applications thanks to the certified NC mirror contact. Compact, with DIN rail mounting, it ensures high reliability and durability. Available worldwide, it is certified according to various standards (IEC, UL, CSA, CCC, EAC, for use in marine environments) and

Features:

Rated control voltage Us 50Hz AC – 220…220 V

Voltage type for actuation – AC

Rated operational power in AC-3, 400 V – 7.5 kW

Rated operational current Ie in AC-1, 400 V – 32 A

Rated operational power Ie in AC-4, 400 V – 4 kW

Product code: LC1D18M7
