SP1710/SP1711, IP68 waterproof cable connector-Spedizione veloce

Name: SP1710/SP1711, IP68 waterproof cable connector-Spedizione veloce
SKU: 14424
Availability: InStock

Original price was: €5.82.Current price is: €1.74.

SKU: 14424 Category: Components

Description

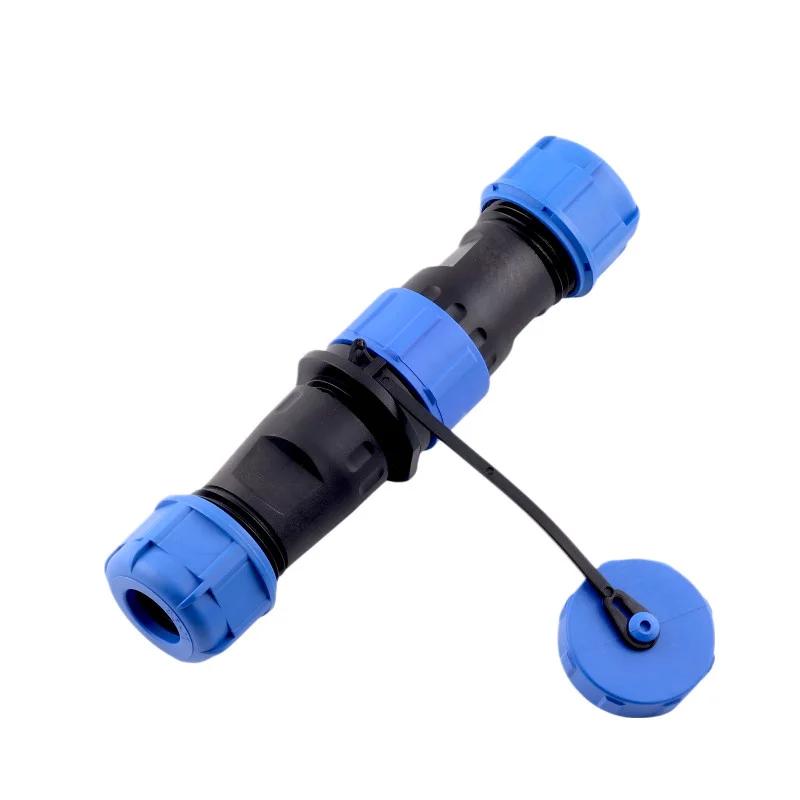

Waterproof docking connector for wires with a diameter of 5 – 10mm. Gold-plated contacts.

Type: SP1710/SP1712 2-pin 3-pin 4-pin 5-pin 7-pin 9-pin

Contact diameter	1.5mm	1.5mm	1mm	1mm	1mm	1mm
Maximum current	10A	10A	10A	10A	10A	10A
Maximum voltage	500V	500V	500V	500V	400V	400V
Contact resistance	2.5m	2.5m	5m	5m	5m	5m
Max. conductor cross-section	2mm ²	2mm ²	0.785mm ²	0.785mm ²	0.785mm ²	0.785mm ²
