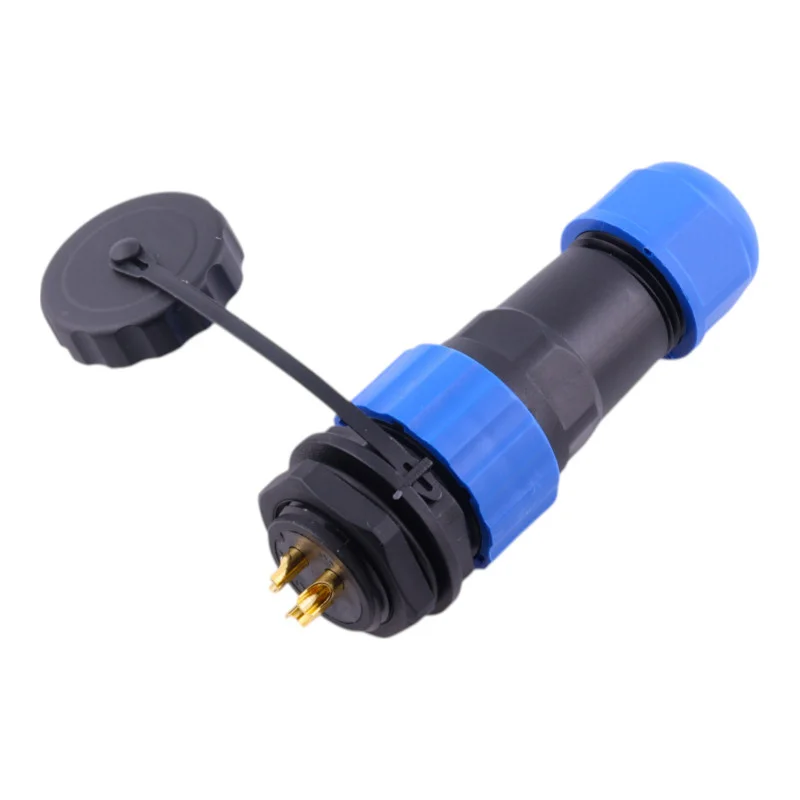

SP20 panel mount, IP68 waterproof cable connector-Spedizione veloce
Sale!
ampul6174547

SP20 panel mount, IP68 waterproof cable connector-Spedizione veloce

Original price was: €6.43.Current price is: €1.92.

SKU: 4045267985 Category:

Description

Waterproof docking connector for wires with a diameter of 8 – 12mm. Gold-plated contacts.

Type: SP20 2-pin 3-pin 4-pin 5-pin 6-pin 7-pin 9-pin 10-pin 12-pin 14-pin
Contact diameter 2.8mm 2.8mm 2.8mm 2.8mm 1.8mm 1.8mm 1mm 1mm 1mm 1mm
Rated current 25A 25A 25A 25A 10A 10A 5A 5A 5A 5A
Rated voltage 250V 250V 250V 250V 250V 250V 250V 250V 250V 250V
Contact resistance 1m 1m 1m 1m 2m 2m 5m 5m 5m 5m
Insulation resistance 2000m 2000m 2000m 2000m 2000m 2000m 2000m 2000m 2000m 2000m
Max. conductor cross-section 6.15mm2 6.15mm2 6.15mm2 6.15mm2 2.54mm 2 2.54mm 2 0.78mm2 0.78mm2 0.78mm2 0.78mm2

Maximum current: 25A

Maximum voltage: 250V AC

Protection: IP68

Working temperature: -20 – 110°C

Relative humidity: 90% – 95%

Material: Polyamide

Package contents: male + female SP20
