Description

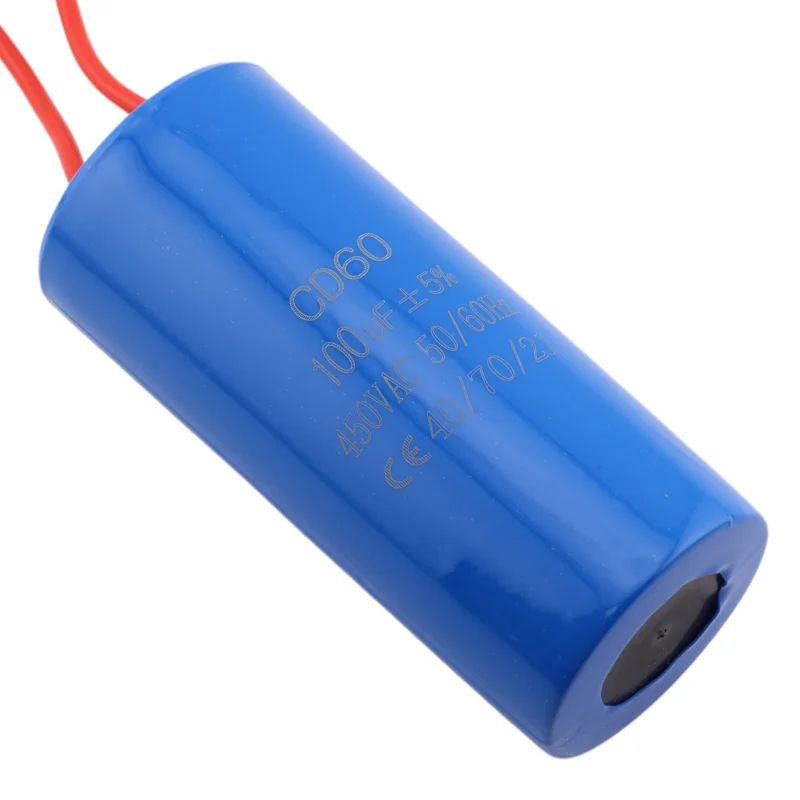

The CD60 is a motor start capacitor designed for short-term operation during the start-up of single-phase asynchronous motors. It is used to increase the starting torque in applications such as pumps, compressors and fans where reliable starting at a mains frequency of 50/60 Hz is required.
Technical specifications
Type: CD60 (motor start capacitor)
Capacitance: 75 µF
Capacity tolerance: ±5%
Rated voltage: 450 VAC
Rated frequency: 50/60 Hz
Terminal design: wires
Functions and features
Designed for starting mode of single-phase AC motors
Support for higher engine starting torque
Compact cylindrical housing suitable for installation in engine compartments and control cabinets
Parameter marking directly on the capacitor body for clear identification
Ideal for
Single-phase asynchronous motors with auxiliary winding
Pumps, compressors, fans and similar devices requiring a starting capacitor
Service and replacement of starting capacitors in industrial and domestic applications
Package contents
1 pc capacitor CD60 75 µF 450 VAC
Why choose this product?
Clearly defined basic parameters: 75 µF, 450 VAC, 50/60 Hz
Suitable solution for common single-phase motor starting circuits
Easy connection thanks to wire terminals
Installation and operating instructions
Before selecting, please verify the required capacity and voltage according to the motor nameplate or original capacitor
Install the capacitor in a dry environment and ensure mechanical mounting against vibration.
The start capacitor is intended for short-term operation during start-up; do not use it as a permanently connected run capacitor unless this is consistent with the design of the equipment.
Safety notice
Working with equipment at 230 VAC and higher voltages is dangerous; perform installation only with the power disconnected
The capacitor may remain charged even after disconnection; always discharge it safely using appropriate procedures before handling.
Maintain insulation distances and use appropriate terminal and conductor shielding.
