Description
| Caratteristiche principali: | |||
|

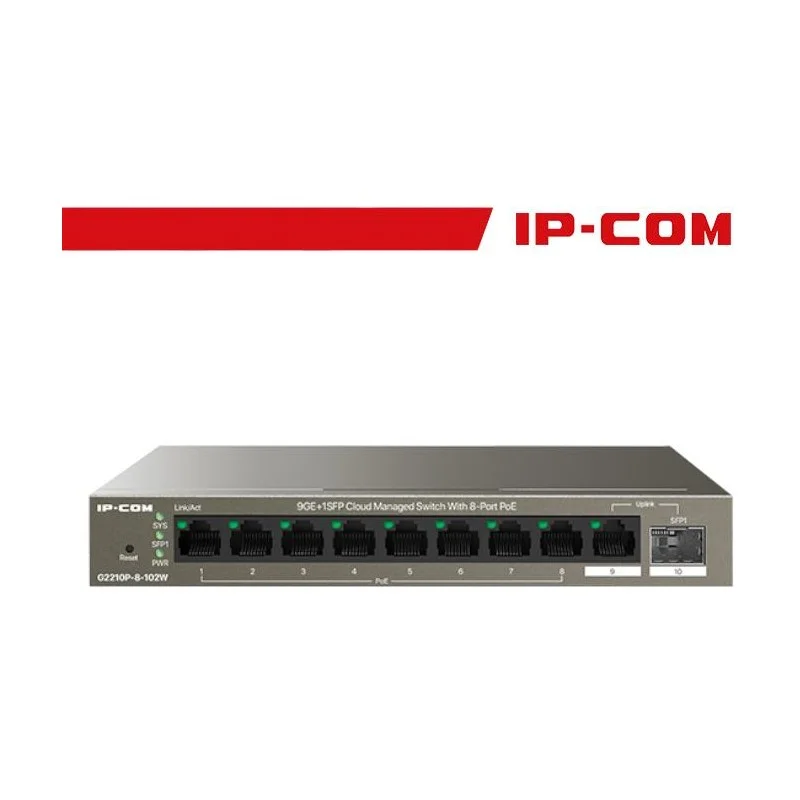

Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af/at, IEEE 802.1q standards 9 × 10/100/1000 Base-T Ethernet ports (8 PoE Ports), 1 × 10/100/1000 Base-X SFP port 16 K MAC address table and MAC address auto learning IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control 20 Gbps switching fabric for non-blocking line-speed forwarding Maximum PoE output of a single port: 30 W, Total PoE output of the switch: 92 W ProFi Cloud web UI and App management 250 m network extension, PoE management, QVLAN, VLAN transparent transmission, traffic statistics, loop guard, DHCP Snooping and MAC address binding |
|||
|
Specifiche tecniche: |
|||
| Interfaccia | 8 × 10/100/1000 Base-T Ethernet ports (PoE & Data) 1 × 100/1000 Base-T Ethernet port (Data) 1 × 1000 Base-X SFP port |
||
| Indicatori LED | One Link/Act LED indicator for each port One PWR LED indicator for each device One SYS LED indicator for each device |
||
| Standard network | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1q, IEEE802.3af, IEEE802.3at | ||
| Velocità Switching | 20 Gbps | ||
| Velocità inoltro pacchetti | 14.9 Mpps | ||
| Protezione fulmini | Port: 6 kV Power supply: 6 kV |
||
| Dimensioni (WxDxH) | 177.5 mm × 104 mm × 26 mm(L x W x H) | ||
| MAC address table |
16K |
||
|
Prodotti correlati: |
|||
|
NT-ANT16-5G120 |
NT-ANT12-5G360 |
||
|
^ Per maggiori informazioni sul prodotto consultare la sezione Downloads ^ |
