Description

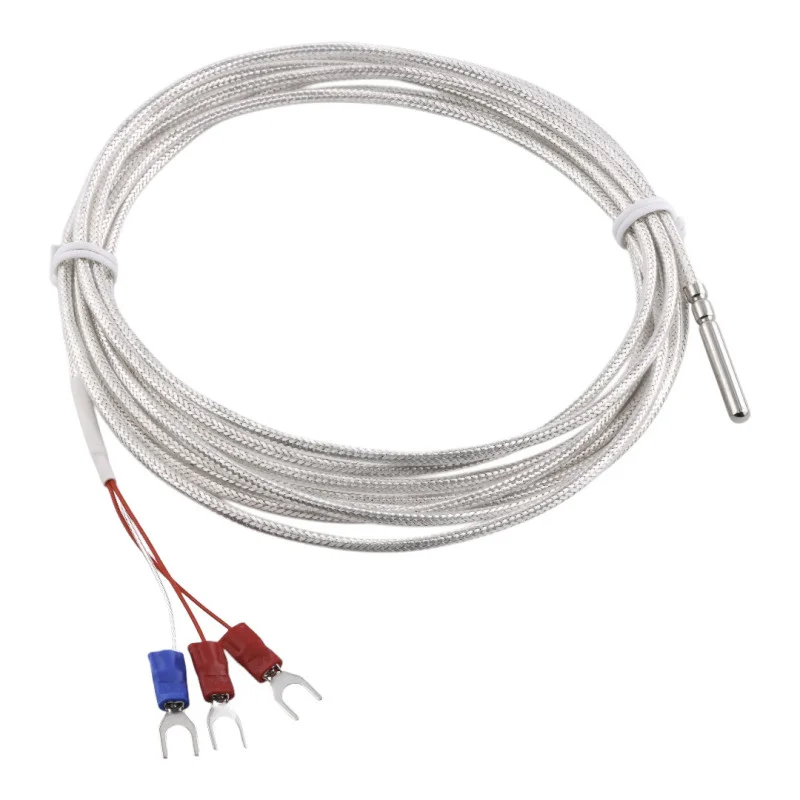

The PT100 resistance temperature sensor is designed for temperature measurement in technological, laboratory and control applications. The design with a probe in a metal housing, 3-wire lead and fork connectors allows connection to regulators, measuring instruments and control systems. The product is available in cable lengths of 0.5 m, 1 m, 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m and 10 m.
Technical specifications
Sensor type: PT100
Sensor type: resistance temperature sensor
Connection type: 3-wire
Cable insulation material: PTFE
Cable shielding: metal shielding
Outer protective braid: transparent PTFE
Probe size: diameter 4 mm, length 30 mm
Probe material: 304 stainless steel
Wire terminations: spade connectors
Available cable lengths: 0.5 m, 1 m, 2 m, 3 m, 4 m, 5 m, 6 m, 7 m, 8 m, 9 m, 10 m
Stated temperature range in the documents: -50 to 200 °C
Functions and features
Resistance temperature measurement using a PT100 sensor
3-wire connection for connection to measuring and control inputs designed for PT100
Metal probe in a tubular design for insertion into the measured location
PTFE insulation and braided cable design for mechanical and thermal resistance of the supply
Shielded cable to reduce the influence of electromagnetic interference
Fork connectors for direct mounting into screw terminals
Ideal for
Connection to temperature controllers and panel meters with PT100 input
Temperature measurement in industrial and workshop facilities
Laboratory and test applications
Installation in heating, cooling and control systems
Package contents
1x PT100 temperature sensor with cable (length according to selected variant)
Why choose this product?
Clearly defined PT100 design with 3-wire connection
Compact 4 x 30 mm probe for installation in confined spaces
Shielded PTFE cable suitable for technical measurement applications
Multiple cable lengths to suit specific installations
Forked termination makes it easy to connect to terminal blocks
Installation and operating instructions
Before connecting, verify the compatibility of the device input with the PT100 sensor and 3-wire connection.
During installation, ensure that the individual wires are connected correctly according to the diagram of the controller or measuring device used.
Do not bend the cable with a small radius at the probe exit point.
Install the sensor so that the measuring part of the probe is in sufficient contact with the measured environment.
Safety notice
Only perform installation and connection when the device is disconnected from power.
Incorrect wiring can lead to measurement errors or damage to the downstream electronics.
If the sensor is connected to an industrial controller or mains-powered device, the installation must be carried out by a qualified person.
The product is not intended for use outside the range and conditions specified by the measuring or control device used.
