Description

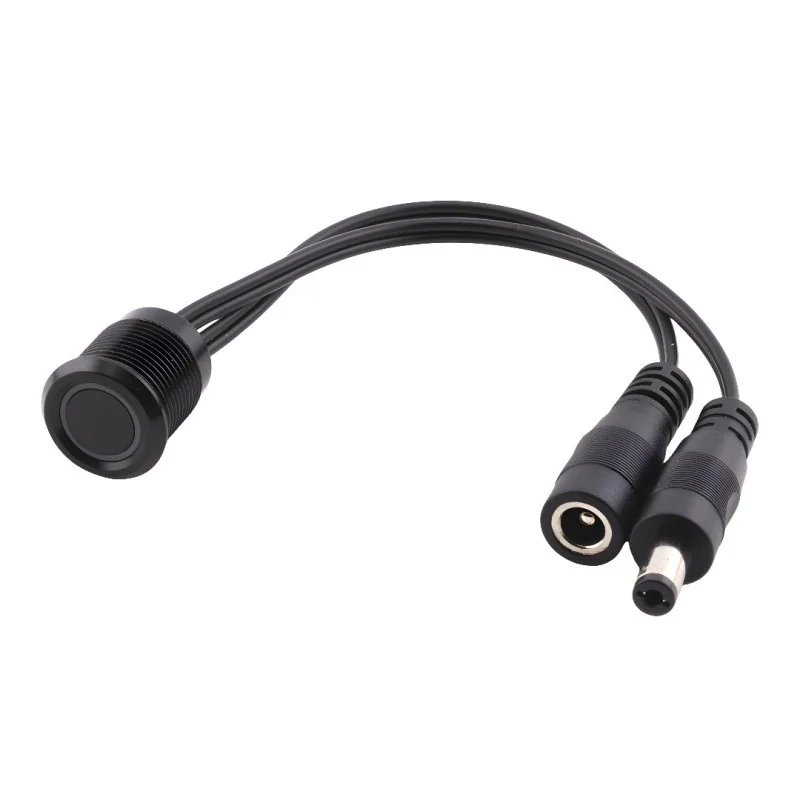

The DIM-1-B touch LED dimmer in black is an elegant control element for smooth brightness control of LED strips and LED luminaires powered by 12 V or 24 V DC. A short touch turns the light on or off, a long hold adjusts the brightness in the range of 5100%. Thanks to its flush mounting and discreet backlit ring, it is an ideal choice for modern interiors, furniture and architectural lighting.
Technical specifications
Model: DIM-1-B
Device type: Touch LED dimmer
Supply voltage: DC 12-24 V
Maximum output current: 6 A
Maximum power: 72 W at 12 V / 144 W at 24 V
Number of channels: 1
Control type: PWM
Control: Capacitive touch
Backlight: blue
Function: ON/OFF and brightness control
Connectors: DC jack 5.5 × 2.1 mm (input and output)
Mounting hole diameter: 16 mm
Front button diameter: 17.8 mm
Cable length: 185 mm
Material: Metal body with black finish
Degree of protection: IP20
Weight: 25g
Certification: CE, RoHS
Functions and features
Short touch to turn the lighting on or off
Long touch for smooth dimming of LED strips
Brightness control range 5-100%
Backlit touch ring for easy navigation in the dark
Memory of the last set brightness level
Recessed mounting in furniture or panel
Silent operation without mechanical parts
Ideal for
LED strips in kitchen units
Furniture and shelf lighting
Showcases and shelving systems
Bedroom and night lighting
Design and architectural LED installations
Package contents
1× touch LED dimmer DIM-1-B (black)
Why choose this product?
Elegant black metal design
High load capacity up to 6 A
Compatible with both 12 V and 24 V LED systems
Simple connection using DC connectors
Modern and comfortable way to control LED lighting
