Description

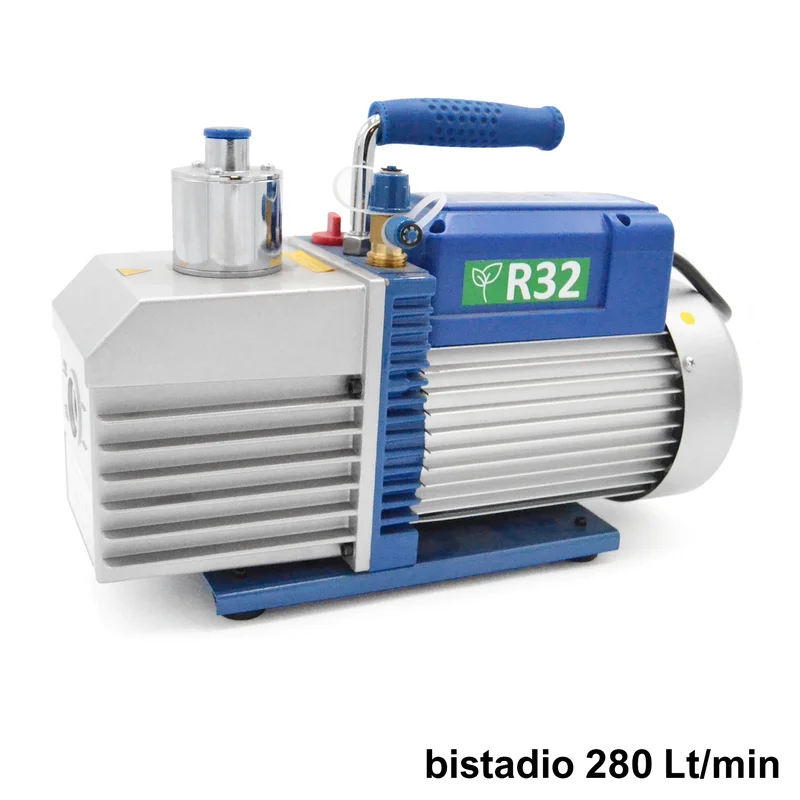

VE2100 – Vacuum pump
Two-stage 280 l/min – 10.0 CFM for gas R32 R1234YF
For evacuation according to DIN 8975
Characteristics:
Instructions in Italian.
Two-stage model with 280 liters per minute – specific for gas R32 and R1234YF for evacuation according to DIN 8975.
This pump model is manufactured with special flameproof insulation on electrical components, allowing it to be certified against potential explosions or deflagrations caused by the flammability of gases R32 and R1234YF.
The pump can naturally also be used on systems with other refrigerant gases such as R410A, R407C, R404A, R22.
Equipped with an on-off switch.
Oil level indicator.
2 bottles of oil included.
Power cable with Shuko plug.
Ergonomic transport handle.
Technical data:
Two-stage model.
Suction capacity in liters per minute: 280.
Motor power: 1 HP.
Power supply: 220 V – 50Hz.
Final vacuum: 3×10-1 Pa – 0.003 mbar.
Oil in the pump: 520 ml.
Dimensions: 395x135x280 (mm).
Weight: 16.50 kg.
Double outlet connection: 1/4′ and 3/8′ SAE.
CE certified.
Product code: VE2100
