Description

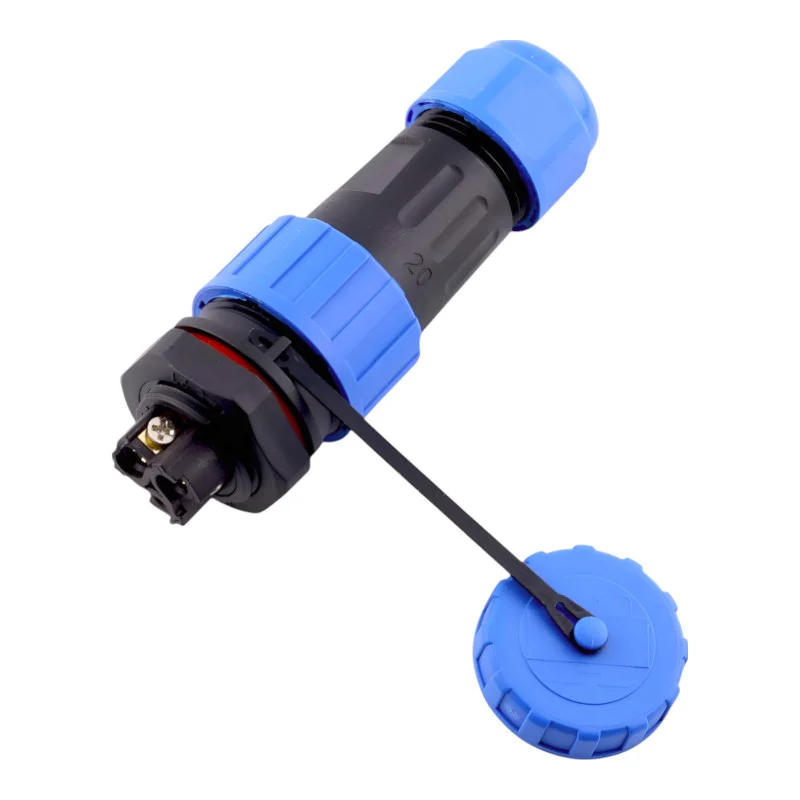

Waterproof docking connector for 6 – 11.5mm diameter wires. Screw-on design. Gold plated contacts.
Protection: IP68Operating
temperature: -20 – 110°CRelative
humidity: 90% – 95%Material
: Polyamide
Package includes male and female
| Type: TY20 | 2-pin | 3-pin | 4-pin | 5-pin | 6-pin | 7-pin |
| Diameter of contacts | 2.8mm | 2.8mm | 2.8mm | 1.8mm | 1mm | 1mm |
| Max. current | 25A | 25A | 25A | 10A | 5A | 5A |
| Max. voltage | 380V | 380V | 380V | 380V | 250V | 250V |
| Max. cable cross-section | 4mm2 | 4mm2 | 4mm2 | 1.5mm2 | 0.75mm2 | 0.75mm2 |
