Description

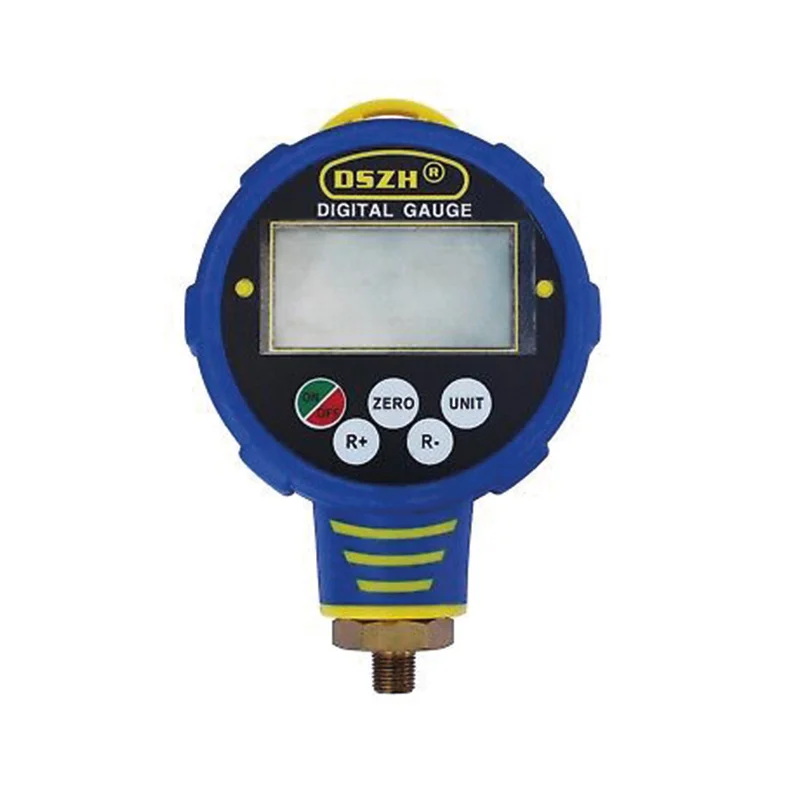

WK-688L – Universal Digital Manometer for Refrigerant Gas Low Pressure
Digital manometers use high-accuracy sensors to detect the operating pressures and temperatures of 82 different types of refrigerants, including vacuum level control.
Features:
Quick selection with pressure/vacuum button.
Database for 82 different refrigerants.
Vacuum measurement with perception value.
Battery charge indicator.
1/8′ NPT male threaded connection.
Technical Specifications:
Measurement Units:
Pre Pressure: Psi / Kpa / bar / inHg / KgF/cm² / Torr
Temperature: °F / °C
Connections:
1/8′ NPT
Pressure Range (Low/High):
0 6 Mpa, resolution 1 Kpa, accuracy ±0.5% of the reading
Vacuum Range:
0 100 kPa ± 5 micron
Overpressure:
100 Bar, 10 Mpa
Refrigerants Supported:
R11, R113, R114, R115, R116, R12, R123, R124, R125, R13, R134a, R14, R141b, R142b, R143a, R152a, R170, R21, R218, R22, R23, R290, R32, R401a, R401b, R401c, R402a, R402b, R403a, R403b, R404a, R405a, R406a, R407a, R407b, R407c, R407d, R407e, R408a, R409a, R409b, R41, R410a, R410b, R411a, R411b, R412a, R413a, R414a, R414b, R415a, R415b, R416a, R417a, R418a, R419a, R420a, R421a, R421b, R422a, R422b, R422c, R422d, R423a, R424a, R425a, R426a, R427a, R428a, R50, R500, R501, R502, R503, R504, R507a, R508a, R508b, R509a, R600, R600a, R717, R744
Operating Temperature:
-20 +60°C
Humidity:
10 90% RH
Size and Weight:
130x90x40 mm. 250gr (without battery)
Battery:
1 x 9V battery, lasts 30 hours continuous without backlight
Contents:
Digital Manometer
Instructions in Italian
Battery not included
Product code: WK-688L
