Description

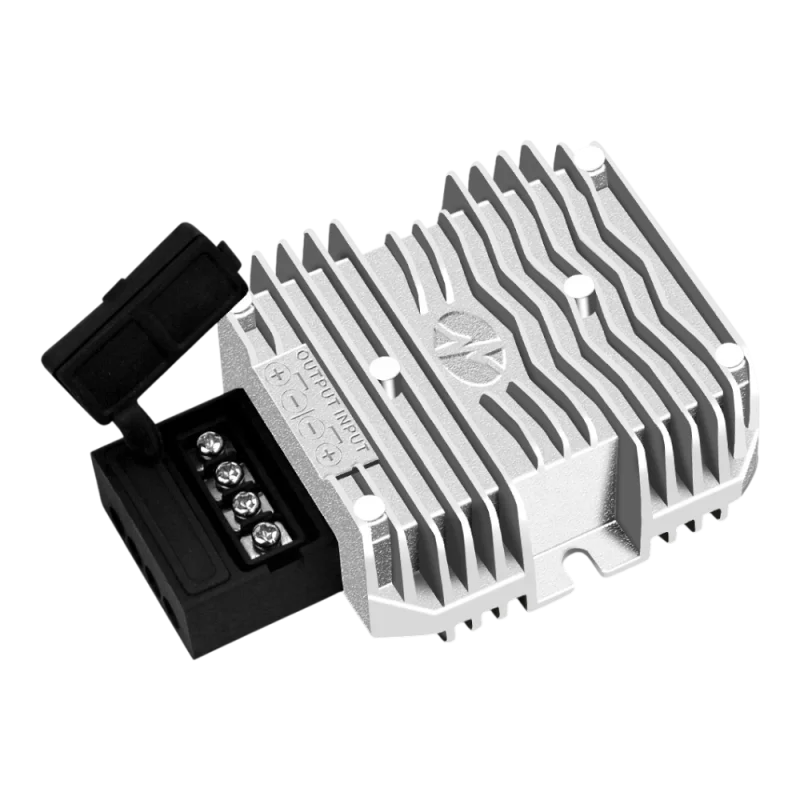

Highly efficient isolated DC/DC converter designed to convert input voltage 1836V DC to stable 5V DC with maximum output current 20A. Robust aluminum body, epoxy potting and passive cooling ensure reliable operation even in harsh industrial conditions. This module is ideal for telecommunications systems, industrial applications, transportation technology and battery-powered systems.
Technical specifications
Input rated voltage: 24V DC
Input range: 1836V DC
Output voltage: 5V DC
Maximum output current: 20A
Maximum output power: 100W
Efficiency: 90% (at 24V input)
Electrical isolation: galvanically isolated input and output
Voltage regulation: < 1%
Load regulation: < 2%
Ripple and noise: 22150 mVp-p
No-load consumption: 6 mA (at 24Vin)
Protections: overvoltage, overcurrent, low input voltage, overheating
Cooling: passive, free air circulation
Operating temperature: 40°C to +80°C
Operating humidity: 10% to 90% RH
Storage temperature: 40°C to +85°C
Weight: 290g
Dimensions: 74 × 74 × 29.5 mm
Input connection: screw terminals
Output connection: screw terminals
Construction: aluminum housing, surface mount, epoxy potting
Certification: CE, RoHS
Functions and features
Galvanically isolated input and output for maximum system safety and stability.
High output current 20A suitable for powering power electronics.
Extremely robust design with high-quality heat dissipation.
Resistant to vibration, moisture and dust thanks to epoxy potting.
Stable and clean output voltage suitable even for sensitive circuits.
Compact dimensions allow installation almost anywhere.
Ideal for
Telecommunications equipment and industrial control systems
Transport technology, vehicles and systems with 24V batteries
Power supply for microprocessors, control units and automation
IoT devices and special power applications
LED lighting and electronic modules requiring a stable 5V power supply
Package contents
1× DC/DC converter 1836V 5V, 20A, isolated
Why choose this product?
High efficiency of 90% and stable parameters even at full load.
The isolated design protects sensitive circuits from interference and faults.
Wide input range suitable for battery systems and industrial installations.
Durable and compact design with long service life.
Safe operation thanks to integrated protections.
