Description

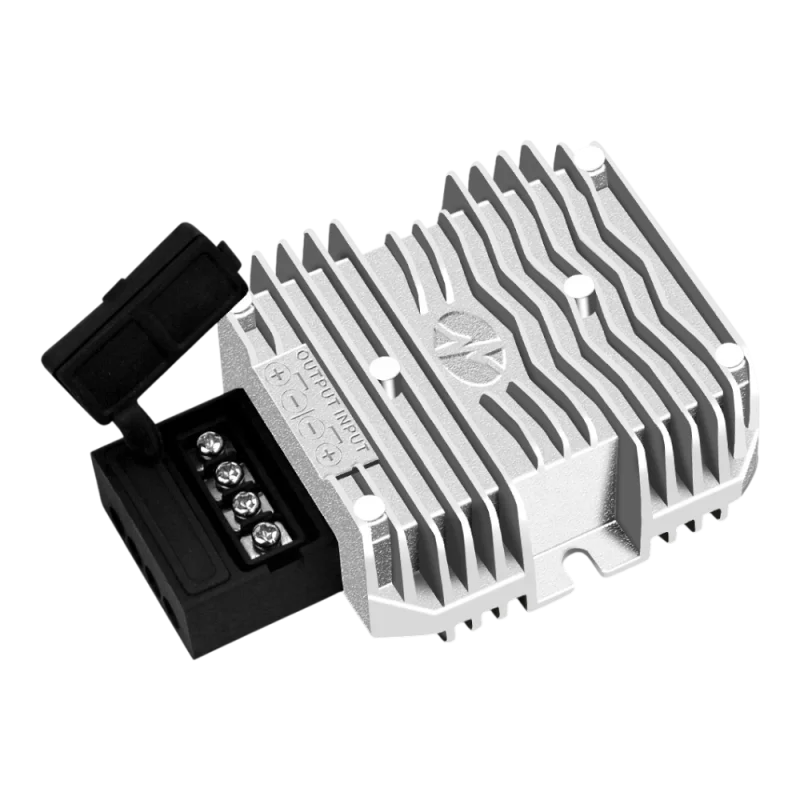

Highly reliable isolated DC/DC converter designed for converting 3675V DC to stable 12V DC with output current up to 10A. Thanks to its robust aluminum construction, epoxy potting and high efficiency, it provides safe and permanently stable operation even in demanding industrial, transportation and telecommunications applications.
Technical specifications
Input rated voltage: 48V DC
Input range: 3675V DC
Output voltage: 12V DC
Maximum output current: 10A
Maximum output power: 120W
Efficiency: up to 93% at 48V input
Electrical isolation: galvanically isolated input and output
Voltage regulation: < 1%
Load regulation: < 2%
Ripple and noise: 22250 mVp-p
No-load consumption: 10 mA at 48Vin
Protections: overvoltage, overcurrent, undervoltage, overheating
Cooling: passive, free airflow
Operating temperature: 40°C to +80°C
Operating humidity: 10% to 90% RH
Storage temperature: 40°C to +85°C
Weight: 570g
Dimensions: 74 × 74 × 29.5 mm
Input connection: screw terminals
Output connection: screw terminals
Construction: aluminum housing, epoxy potting, surface mount
Certification: CE, RoHS
Functions and features
Fully isolated input and output to protect equipment and eliminate interference.
High efficiency up to 93% and very low heat loss.
Stable output voltage of 12V even with significantly fluctuating input voltage.
Robust aluminum construction with excellent heat dissipation.
Epoxy encapsulation increases resistance to vibration, moisture and dust.
Suitable for continuous operation in demanding industrial environments.
Ideal for
Telecommunications equipment and power infrastructure
Industrial control systems and automation
Transportation and mobility technologies with 48V power supply
Electronic control units and power modules
Applications requiring stable and isolated 12V voltage
Package contents
1× DC/DC converter 3675V 12V, 10A, isolated
Why choose this product?
Wide input range 3675V for professional and industrial use.
Galvanic isolation of input and output for maximum safety.
High efficiency, long life and minimal maintenance.
Durable aluminum body with high-quality heat sink.
Stable operation even in extreme temperature conditions.
