Description

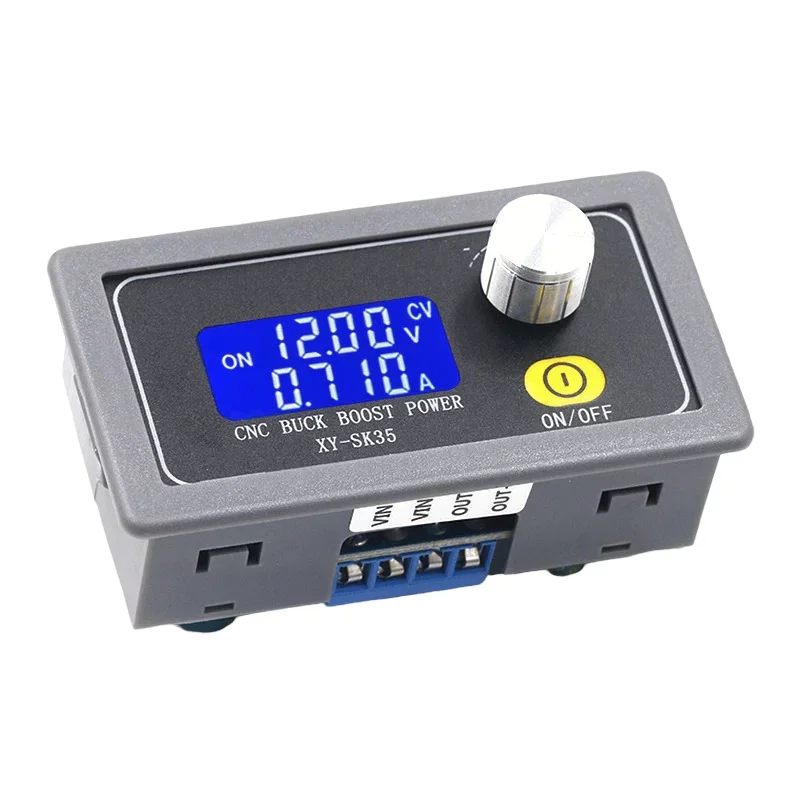

This DC/DC converter is used to regulate the input voltage, which has an input voltage range from 5 to 30V. The output voltage ranges from 0.6 to 30 V. The value of the output voltage can be adjusted using a rotary switch. The module includes short-circuit protection, temperature fuse (100°C).
Input voltage: 5-30V
Output voltage: 0.6-30V DC
Max. current: 4A
Max. power: 35W with cooling up to 50W
Output short circuit protection
Operating temperature: -40 to 85°C
Dimensions: 79x43x36mm
Mounting hole: 76x40mm
Weight: 95g
Model: SK35
