Description

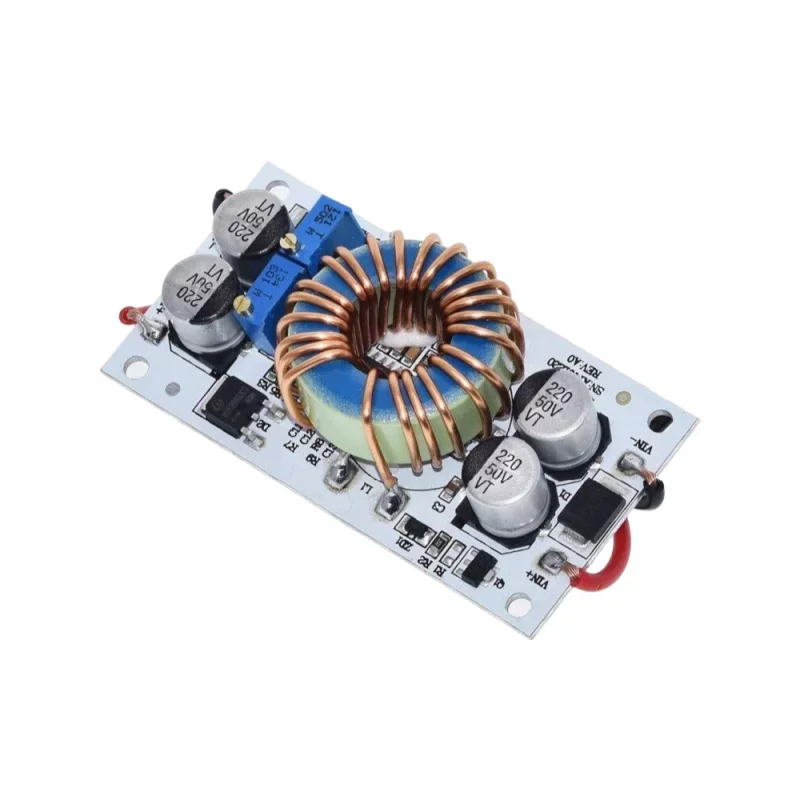

Non-isolated DC/DC boost (step-up) converter for increasing and stabilizing DC voltage in applications with variable input. The output voltage is continuously adjustable using a trimmer, the module is designed for integration into devices and power supply from DC sources (e.g. batteries, power lines, industrial DC distribution).
Technical specifications
Inverter type: boost (step-up), non-isolated
Input voltage: DC 8.5-48V
Output voltage: DC 10-50 V, continuously adjustable
Max. output power: 250 W
Max. current: up to 8 A (depending on input/output voltage and cooling)
Quiescent current: approx. 10 mA (specified for 12 V; depends on output setting)
Switching frequency: 150 kHz
Efficiency: up to 96%
Operating temperature: 40 to +85 °C
Protection: IP20
Protections: overcurrent protection, input reverse polarity protection, output short circuit protection, thermal protection (100 °C thermal fuse)
Connection: input and output terminals
Mounting: 4x screw mounting holes (3 mm)
Dimensions: 70 × 36 × 13 mm
Weight: 65g
Functions and features
Continuous adjustment of output voltage using a trimmer
Suitable for increasing voltage while maintaining DC power supply without galvanic isolation
Integrated protections for common fault conditions (overcurrent, short circuit, reverse polarity)
For higher currents, it is necessary to ensure adequate heat dissipation (cooling)
Ideal for
Powering devices requiring higher DC voltage than the source provides (e.g. 12 V to 24 V / 36 V / 48 V)
Built-in power supplies in industrial electronics, automation and laboratory assemblies
Power supply from battery systems and DC distribution within the permitted range
Package contents
DC/DC converter (boost) 1 pc.
Why choose this product?
Wide input voltage range and continuously adjustable output voltage
High switching frequency and efficiency suitable for compact installation
Integrated protection functions for more stable operation in real-world applications
Mounting holes and clamps for convenient installation into equipment
Installation and operating instructions
Before connecting, check the polarity of the input and output and set the desired output voltage without load.
For higher loads, ensure sufficient cooling; if the load exceeds approximately 8 A, heat dissipation must be strengthened according to the specification.
Size the supply wires and fuses according to the expected current; minimize voltage drops on the line.
The module is non-isolated the ground (GND) of the input and output is common.
Safety notice
The output voltage can reach up to 50 V DC; observe safe working practices during installation and measurement and avoid short-circuiting the output.
The module is intended for built-in installation (IP20); ensure protection against contact and against the ingress of conductive particles.
Incorrect wiring, insufficient cooling, or overloading can cause overheating and damage to the device.
