Description
The DC-DC voltage converter is used to convert a direct current input voltage of 12/24 V DC to a stabilized output voltage of 5 V DC. It is designed for powering devices requiring low direct current voltage and higher output current, for example in automotive, service, industrial, or installation applications.
Technical specifications
Product type: DC-DC voltage converter
Input voltage: 12/24 V DC (10-30V DC)
Output voltage: 5 V DC
Output current: 20 A
Output power: 100 W
Protection rating: IP68
Dimensions: 74 x 74 x 32 mm
Weight: 250 g
Certification: CE, RoHS
Functions and features
Conversion of direct current voltage from 12/24 V DC to an output of 5 V DC.
Designed for use in electrical and electronic devices with direct current power supply.

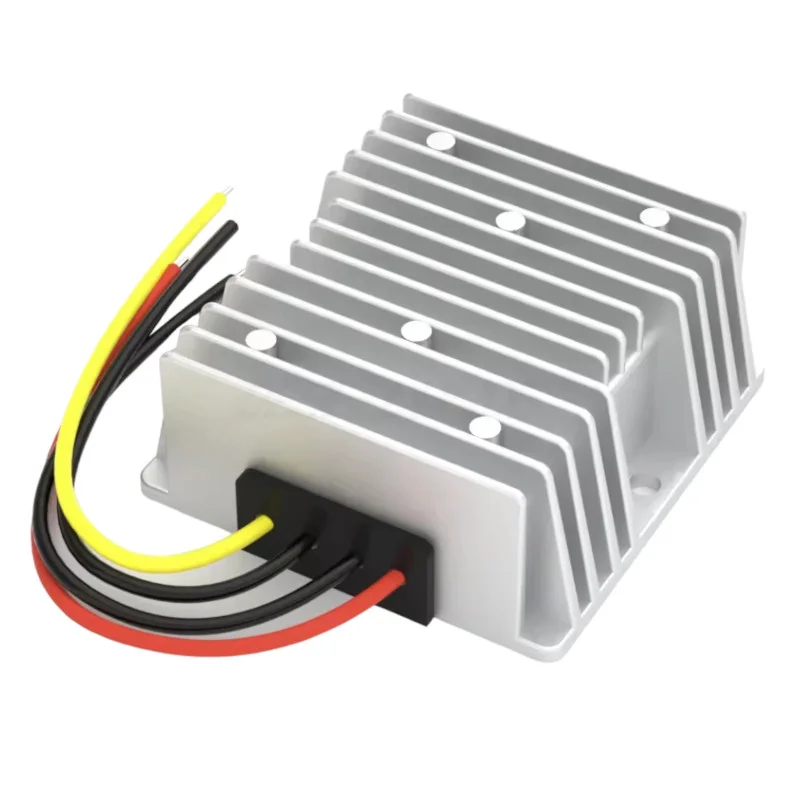

Construction in a closed casing with wires for connecting the input and output.
The IP68 protection rating allows use in environments with increased demands for protection against dust and water.
The output power of 100 W is given by the output voltage of 5 V DC and the output current of 20 A.
Ideal for
Powering 5V DC devices from a 12/24 V DC direct current power supply system.
Automotive and onboard electrical installations with direct current voltage.
Service and development applications where conversion to a stabilized voltage of 5 V DC is needed.
Electronic projects with a requirement for higher output current at a voltage of 5 V DC.
Package contents
1x DC-DC voltage converter 12/24 V DC to 5 V DC, 20 A
Why choose this product
The input voltage of 12/24 V DC corresponds to common direct current power supply systems.
The output of 5 V DC and 20 A allows powering devices with a requirement for higher current draw.
The closed design with IP68 protection rating is suitable for installations with higher demands on casing durability.
The output power of 100 W is based on the verifiable calculation of 5 V x 20 A.
Installation and operation instructions
Before connecting, verify that the input voltage corresponds to the value of 12/24 V DC.
The connected load must not exceed the output values of 5 V DC and 20 A.
Observe the correct polarity of both the input and output connections.
For a current of 20 A, use wires and terminals corresponding to the current load.
Install the converter in such a way as to prevent short circuits, mechanical damage, or contact with conductive objects.
The installation may only be performed by a person with knowledge of working with direct current power circuits.
Safety warnings
Incorrect connection leads to damage to the converter, the connected load, or the power supply.
In case of overload, short circuit, or insufficient cooling, there is a risk of overheating.
Do not connect the converter outside the specified input voltage of 12/24 V DC.
Before handling, disconnect the power supply and verify the absence of voltage on the wires.
The product is not intended for direct connection to mains voltage.
