Description

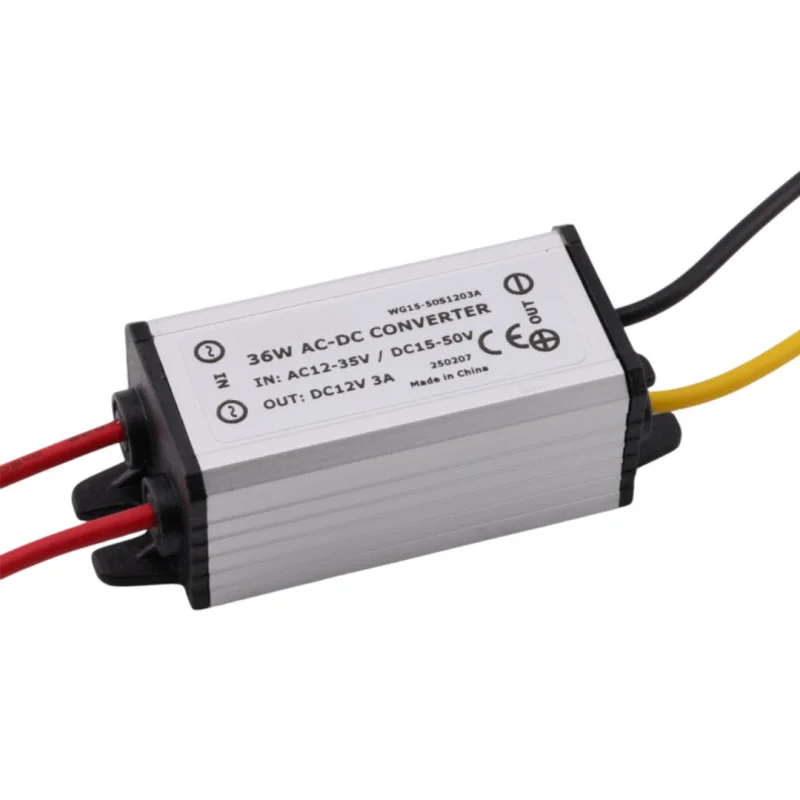

The voltage converter is used to convert low-voltage alternating current power to a stabilized direct current output of 12 V DC. It is designed for powering devices requiring a direct current voltage of 12 V in installations where an input voltage of 12-35 V AC is available. The metal casing with IP68 protection allows use in environments with increased demands for resistance to moisture and dust.
Technical specifications
Device type: AC/DC voltage converter
Input voltage: 12-35 V AC
Output voltage: 12 V DC
Maximum output current: 3 A
Output power: 36 W
Efficiency: 88 %
No-load consumption: max. 20 mA
Protection: IP68
Operating temperature: -40 to +80 °C
Ambient humidity: 0 to 95 %
Dimensions: 65 x 25 x 20 mm
Weight: 50 g
Certification: CE, RoHS
Functions and features
Conversion of input alternating voltage to output direct voltage 12 V DC.
Integrated overload protection.
Integrated overvoltage protection.
Integrated overheating protection.
Integrated short circuit protection.
Aluminum casing with ribbing for heat dissipation.
Potted design suitable for installations with a requirement for increased resistance to water and dust.
Connection using led-out wires.
Ideal for
Powering 12V DC devices from a 12-35 V AC source.
Low-voltage electrical installations with a requirement for a stabilized direct current output.
Technical applications in environments with increased humidity or dustiness.
Built-in installations in devices, distributions, and systems with limited installation space.
Package contents
Voltage converter with led-out connection wires.
Why choose this product
Allows conversion of low-voltage AC power to a 12 V DC output.
Features the listed protective functions against overload, overvoltage, overheating, and short circuit.
IP68 protection supports use in more demanding installation conditions.
The metal ribbed casing helps dissipate heat from the converter.
Compact dimensions facilitate integration into technical devices.
Installation and operation instructions
Before connection, verify the compliance of the input voltage with the converter specification.
Observe the correct polarity of the output direct current voltage.
The output load must not exceed the specified maximum current and power.
Install the converter so that it is not mechanically stressed by the supply wires.
During continuous load, ensure conditions for heat dissipation from the casing.
Safety warnings
Installation may only be performed by a person with knowledge of wiring electrical devices.
Disconnect the power supply of the entire circuit before installation.
Incorrect wiring can cause damage to the converter, connected device, short circuit, or overheating.
Do not use the product outside the specified electrical and operating parameters.
Do not connect a damaged converter or a converter with damaged wire insulation to the power supply.
